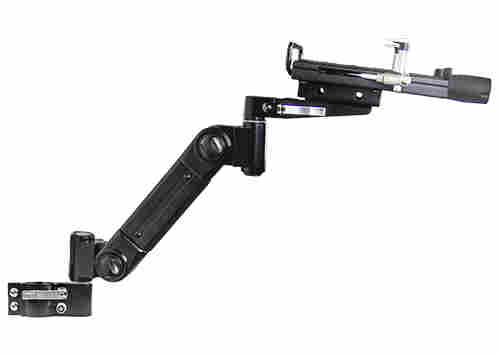

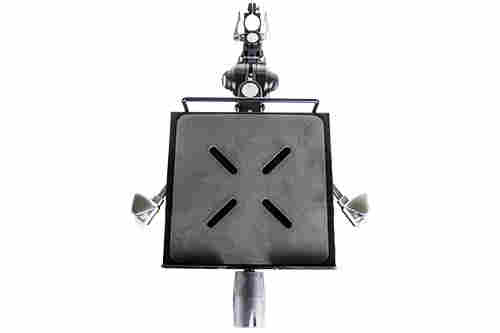

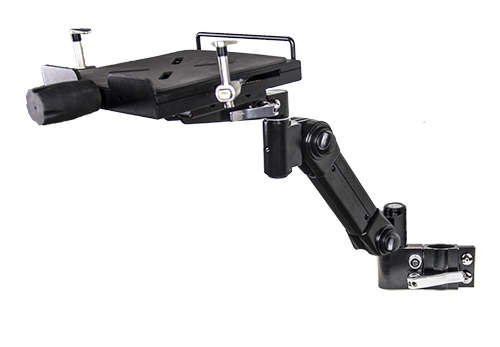

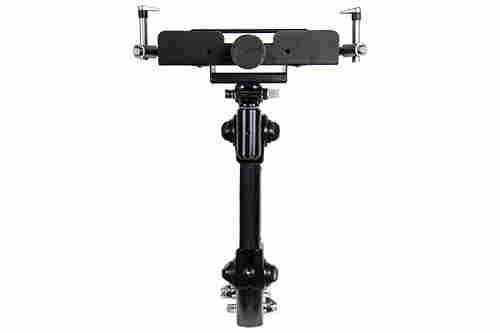

60223-PLC POLE MOUNTED ADJUSTABLE ARM WITH LAPTOP CLAMP

The 60223-PLC combines the adjustable arm with a laptop clamp to securely hold your laptop in place.

Weight capacity for this system is 5-15 lbs. which is usually sufficient for most all laptops.  If you require more weight capacity, please contact CPS.

The adjustable arm provides vertical positioning from the vertical (Up) to horizontal (down) positions.  The laptop mounting bracket provides left / right pivot and forward / back tilt.

Optional Mouse Tray available

Mounting solutions available for 1.5" or 2" diameter tubing (poles).  Note: If your poles are built from pipe instead of tubing, the standard pole mount brackets may not be compatible due to outside dimension variance.

CPS can provide poles that are worksurface, floor or ceiling mounted.  Pole Options

Color choices are light gray or black.

Reference the ORDER GUIDE tab in the section below to find the specific arm configuration that meets your application requirements.

Optional Mouse Tray

P24-12-10AB Mouse Platform

Mouse Tray

Bolts

Mouse Pad

Wire Mouse Catch

Sales through the online store are currently available only to businesses within the 48 continental US states. These products are not available to the retail/consumer markets. Business-to-business only. Contact CPS if you wish to place an order and are located outside of that geographical area. PH: 651-452-0113 or email to Email Custom Products



Pole Mount (1.5 inch Dia) Adjustable Arm + Laptop Clamp
5-15
60223PLC 15 AL
395.67
Pole Mount (2.0 inch Dia) Adjustable Arm + Laptop Clamp
5-15
60223PLC 20 AL
395.67
Optional Mouse Tray
P24 12 10 AB
40.70



Modular Design
These arm systems consist of modular components that can be added or removed to meet the users specific application requirements.  Supporting your LCD display, keyboard, laptop or some other type of equipment can be accomplished with a variety of arm configurations found throughout this product section.
Material
Manufactured using high quality aluminum die castings and aluminum extrusions.  Built for commercial and industrial applications in a wide variety of industries, including manufacturing, electronics, medical, military, government, schools and universities.  The keyboard platform is manufactured from high impact phenolic for durability and cosmetic appeal.  Wrist rest is included.  The adjustable mouse tray is an option that can be ordered separately.
Finish
Industrial quality powder coat finish.  Most components available in light gray or black.  Keyboard platform is black only.


Range of Motion
Adjustable Arm: Left / Right Pivot, 90-degree Vertical adjustment (vertical up to horizontal down). Laptop Clamp: Left / Right Pivot, Forward / Back Tilt.
Easy to Install
Installation takes less than 15 minutes using common hand tools.







Part Number:
60223-PLC (See Order Guide tab for specifics)
Weight Capacity:
5-15 lbs.
Adjustable Arm Dimensions:
15" L (Pivot point to pivot point)
Laptop Clamp Dimensions:
9-1/2" D x 9-1/2" W





Color / Finish:
Black or Light Gray Powder Coated Finish

Warranty:
1 year from date of purchase
Shipping Method:
FedEx or UPS



  • Platform Pivot Bracket (21-14)
  • Laptop Clamp (24-06)
  • Adjustable Arm (22-04-3) Light Duty or (22-04-5) Heavy Duty
  • Pole Mount Bracket (25-40-Q) or (25-42-Q)
  • Split Sleeves (25-42-SS) Based on Pole Mount Diameter
  • Hardware
