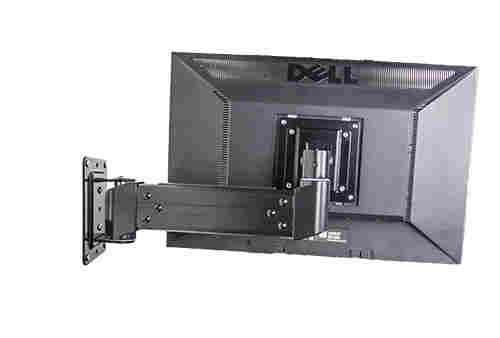

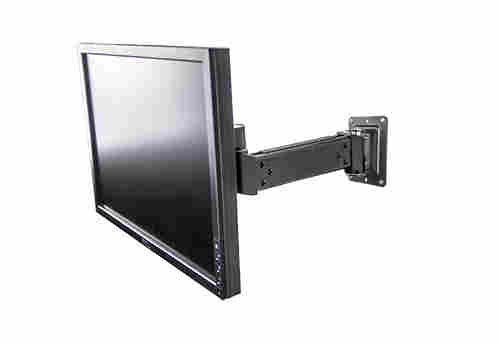

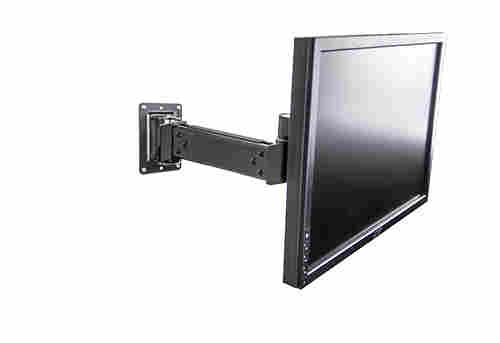

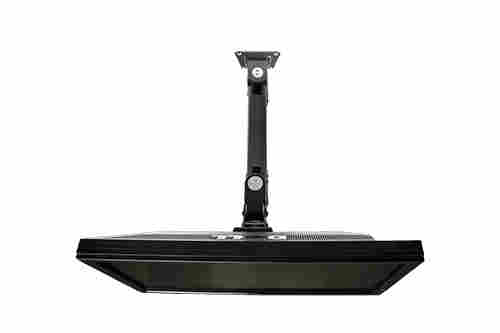

60221-W WALL MOUNT MONITOR MOUNT WITH 10" OR 18" EXTENSION ARM

The #60221-W is a wall mounted LCD display arm that is configured with a choice of a 10" or 18" extension arm.  Left / right arm pivot, as well as forward / back tilt and portrait / landscape screen positioning are standard features.  Weight capacity: 24 lbs.  Arm color choices are light gray or black. .



Reference the ORDER GUIDE tab in the section below to find the specific arm configuration that meets your application requirements.

Request Information





Modular Design
These arm systems consist of modular components that can be added or removed to meet the users specific application requirements.  Supporting your LCD display, keyboard, laptop or some other type of equipment can be accomplished with a variety of arm configurations found throughout this product section.
Material
Manufactured using high quality aluminum die castings and aluminum extrusions.  Built for commercial and industrial applications in a wide variety of industries, including manufacturing, electronics, medical, military, government, schools and universities.  The keyboard platform is manufactured from high impact phenolic for durability and cosmetic appeal.  Wrist rest is included.  The adjustable mouse tray is an option that can be ordered separately.
Finish
Industrial quality powder coat finish.  Most components available in light gray or black.  Keyboard platform is black only.
VESA Compatible
75mm or 100mm
Range of Motion
Extension Arm: Left / Right Pivot. LCD Display: Left / Right Pivot, Forward / Back Tilt, Portrait / Landscape rotation.
Easy to Install
Installation takes less than 15 minutes using common hand tools.







Part Number:
60221-W (See Order Guide tab for specifics)
Weight Capacity:
24 lbs.
Extension Arm Dimensions:
10" Arm: 9-1/2"  /  18" Arm: 17-1/2" (from center of pivot points)
Color / Finish:
Black or Light Gray Powder Coated Finish
Warranty:
1 year from date of purchase
Shipping Method:
FedEx or UPS



DESCRIPTION WEIGHT CAPACITY PART NUMBER
Wall Mount, 6.5" Extension Arm, Light Gray 24 60221W-65-G
Wall Mount, 6.5" Extension Arm, Black 24 60221W-65-B
Wall Mount, 10" Extension Arm, Light Gray 24 60221W-10-G
Wall Mount, 10" Extension Arm, Black 24 60221W-10-B
Wall Mount, 18" Extension Arm, Light Gray 24 60221W-18-G
Wall Mount, 18" Extension Arm, Black 24 60221W-18-B

Request Information

  • Pivot Bracket, mount LCD display to arm (21-01)
  • Adaptor plate: Convert 75 x 75mm to 100 x 100mm  (21-02)
  • Extension Arm 6.5"(22-06-1), 10"(22-03-3), or 18"(22-03-4)
  • Wall Mount Bracket  6.5" (25-11-SP) or 10" and 18" (25-12)
  • Hardware
