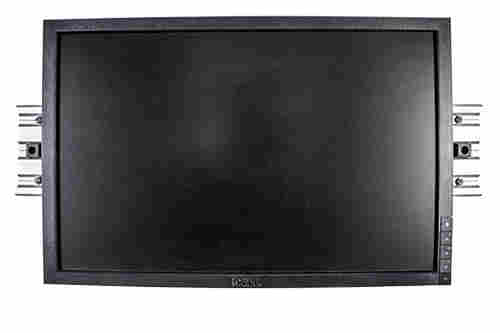

60260-K LCD DISPLAY MOUNTED FLAT TO TRACK

The 60260-K allows the LCD Display to be mounted as flush to the wall as possible for applications such as hallways or small spaces. In this configuration, there is NO left / right pivot or tilt function available.  The LCD display can slide along the track, but no other adjustments are possible. The wall mounted track is 22" long and for this specific configuration, the track can only be mounted in the horizontal position. The aluminum track allows the arms to be easily located and moved along the length of the track, as needed. Multiple tracks can be mounted end-to-end for additional versatility.



Reference the ORDER GUIDE tab in the section below to find the specific arm configuration that meets your application requirements.







Modular Design
These arm systems consist of modular components that can be added or removed to meet the users specific application requirements.  Supporting your LCD display, keyboard, laptop or some other type of equipment can be accomplished with a variety of arm configurations found throughout this product section.
Material
Manufactured using high quality aluminum die castings and aluminum extrusions.  Built for commercial and industrial applications in a wide variety of industries, including manufacturing, electronics, medical, military, government, schools and universities.  The keyboard platform is manufactured from high impact phenolic for durability and cosmetic appeal.  Wrist rest is included.  The adjustable mouse tray is an option that can be ordered separately.
Finish
Industrial quality powder coat finish.  Most components available in light gray or black.  Keyboard platform is black only.
VESA Compatible
75mm or 100mm
Range of Motion
 LCD Display: No pivot, No Tilt.  Mounts flat to track. LCD can slide along length of track.
Easy to Install
Installation takes less than 15 minutes using common hand tools.





Part Number:
60260-K (See Order Guide tab for specifics)
Weight Capacity:
5-24 lbs.
LCD Display Mount
Mounts close to track.  No tilt, No pivot.
Color / Finish:
Black or Light Gray Powder Coated Finish
Warranty:
1 year from date of purchase
Shipping Method:
FedEx or UPS



DESCRIPTION WEIGHT CAPACITY PART NUMBER
Track Mount, Single LCD, No tilt or pivot function, Light Gray 24 60260K-1-G
Track Mount, Single LCD, No tilt or pivot function, Black 24 60260K-1-B
Track Mount, Dual LCD, No tilt of pivot function. Light Gray 24 60260K-2-G
Track Mount, Dual LCD, No tilt of pivot function. Black 24 60260K-2-B
(See 60215-K or 60221-K if pivot or tilt functions are required)
  • Quick Release LCD Display Track Mount (NO TILT) (21-21-Q)
  • Adaptor Plate, Converts 75 x 75mm to 100 x 100mm (21-02)
  • 22" Aluminum Track (25-50-16)
  • Hardware
