General Information

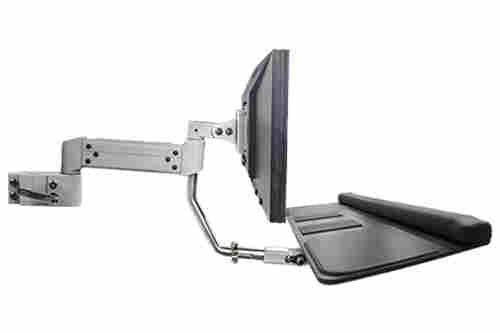

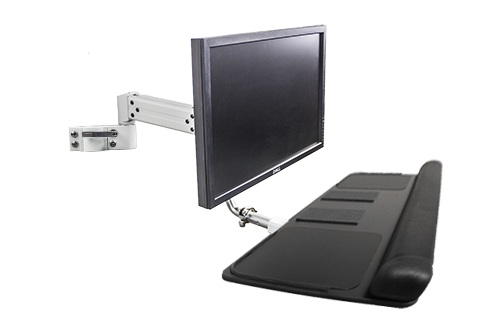

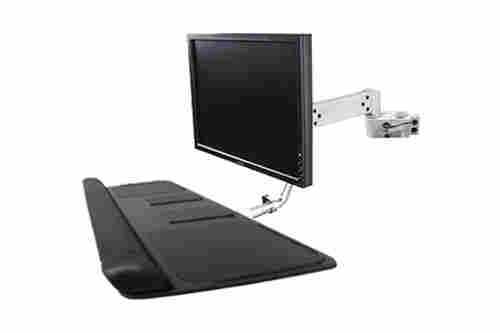

60239-P10 POLE MOUNTED WITH EXTENSION ARM, KEYBOARD PLATFORM AND MOUSE TRAY

The 60239-P10 series combines the 10" or 18" extension arm with the drop down phenolic keyboard.

The extension arm provides full left / right pivot.  The monitor tilts forward / back and can rotate portrait / landscape.  The keyboard support bracket provides tilt and pivot functions.

Maximum weight capacity: 20 lbs.

Mounting solutions available for 1", 1.5" or 2" diameter tubing (poles).  Note: If your poles are built from pipe instead of tubing, the standard pole mount brackets may not be compatible due to outside dimension variance.

CPS can provide poles that are worksurface, floor or ceiling mounted.  Pole Options

Arm colors: Black or light gray.  Keyboard color: Black only.

Reference the ORDER GUIDE tab in the section below to find the specific arm configuration that meets your application requirements.



Modular Design
These arm systems consist of modular components that can be added or removed to meet the users specific application requirements.  Supporting your LCD display, keyboard, laptop or some other type of equipment can be accomplished with a variety of arm configurations found throughout this product section.
Material
Manufactured using high quality aluminum die castings and aluminum extrusions.  Built for commercial and industrial applications in a wide variety of industries, including manufacturing, electronics, medical, military, government, schools and universities.  The keyboard platform is manufactured from high impact phenolic for durability and cosmetic appeal.  Wrist rest is included.  The adjustable mouse tray is an option that can be ordered separately.
Finish
Industrial quality powder coat finish.  Most components available in light gray or black.  Keyboard platform is black only.
VESA Compatible
75mm or 100mm
Range of Motion
Extension Arm: Left / Right Pivot,  LCD Display: Left / Right Pivot, Forward / Back Tilt, Portrait / Landscape Rotation. Keyboard Platform: Left / Right Pivot, Forward / Back Tilt
Easy to Install
Installation takes less than 15 minutes using common hand tools.





Part Number:
60239-P10 (See Order Guide tab for specifics)
Weight Capacity:
20 lbs. (Determined by LCD display weight)
Extension Arm Dimensions:
10" or 18"" L
Keyboard Platform Dimensions:
25" W x 10" D
Color / Finish:
Black or Light Gray Powder Coated Finish
Warranty:
1 year from date of purchase
Shipping Method:
FedEx or UPS





DESCRIPTION WEIGHT CAPACITY PART NUMBER
Pole Mount (2.0" Dia) 10" Extension Arm + Keyboard Platform, Light Gray 20 60239P10-20-520-G
Pole Mount (2.0" Dia) 10" Extension Arm + Keyboard Platform, Black 20 60239P10-20-520-B

Pole Mount (1.5" Dia) 10" Extension Arm + Keyboard Platform, Light Gray 20 60239P10-15-520-G
Pole Mount (1.5" Dia) 10" Extension Arm + Keyboard Platform, Black 20 60239P10-15-520-G
Pole Mount (2.0" Dia) 18" Extension Arm + Keyboard Platform, Light Gray 20 60239P18-20-520-G
Pole Mount (2.0" Dia) 18" Extension Arm + Keyboard Platform, Black 20 60239P18-20-520-B

Pole Mount (1.5" Dia) 18" Extension Arm + Keyboard Platform, Light Gray 20 60239P18-15-520-G
Pole Mount (1.5" Dia) 18" Extension Arm + Keyboard Platform, Black 20 60239P18-15-520-G
  • Pivot Bracket, Attach Monitor to Arm (21-01)
  • Adaptor plate, converts 75 x 75mm to 100 x 100mm (21-02)
  • Keyboard Mounting Assembly (21-13D)
  • Keyboard Platform (TS825CH)
  • Extension Arm 10" (22-03-3) or 18" (22-03-4)
  • Pole Mount Bracket (25-40-Q) or (25-42-Q)
  • Split Sleeves (25-42-SS) Based on Pole Mount Diameter
  • Hardware
