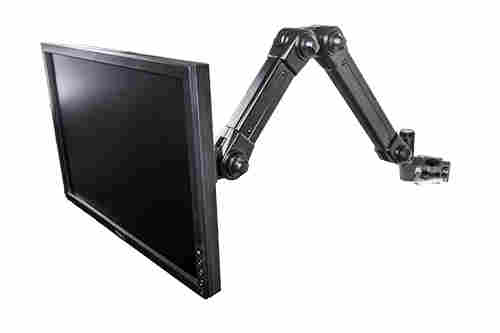

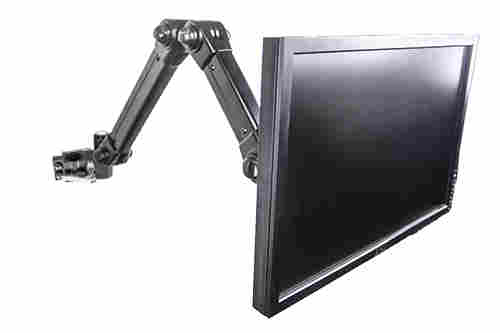

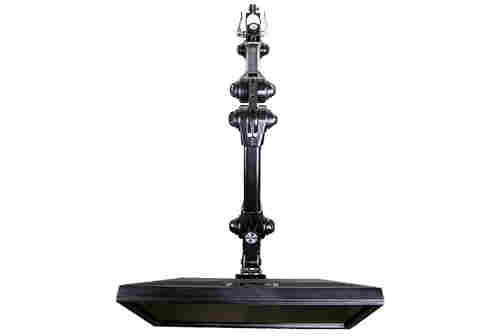

60226-P POLE MOUNTED, DUAL ADJUSTABLE LCD DISPLAY ARM

The 60226-P Dual adjustable arms provide a full 180 degree of vertical adjustment (Vertical up to vertical down).

Maximum weight capacity for this arm is 2-12 lbs, so it is designed for use with smaller monitors.

Arm will rotate 180 degrees left / right.  The monitor can pivot full left right, tilt forward / back and rotate portrait / landscape.

Mounting solutions available for 1", 1.5" or 2" diameter tubing (poles).  Note: If your poles are built from pipe instead of tubing, the standard pole mount brackets may not be compatible due to outside dimension variance.

CPS can provide poles that are worksurface, floor or ceiling mounted.  Pole Options

Reference the ORDER GUIDE tab in the section below to find the specific arm configuration that meets your application requirements.



Modular Design
These arm systems consist of modular components that can be added or removed to meet the users specific application requirements.  Supporting your LCD display, keyboard, laptop or some other type of equipment can be accomplished with a variety of arm configurations found throughout this product section.
Material
Manufactured using high quality aluminum die castings and aluminum extrusions.  Built for commercial and industrial applications in a wide variety of industries, including manufacturing, electronics, medical, military, government, schools and universities.  The keyboard platform is manufactured from high impact phenolic for durability and cosmetic appeal.  Wrist rest is included.  The adjustable mouse tray is an option that can be ordered separately.
Finish
Industrial quality powder coat finish.  Most components available in light gray or black.  Keyboard platform is black only.
VESA Compatible
75mm or 100mm
Range of Motion
Adjustable Arms: Left / Right Pivot, 90-degree Vertical adjustment (vertical up to horizontal down). LCD Display: Left / Right Pivot, Forward / Back Tilt, Portrait / Landscape Rotation.
Easy to Install
Installation takes less than 15 minutes using common hand tools.







Part Number:
60226-P (See Order Guide tab for specifics)
Weight Capacity:
2-12 lbs
Adjustable Arm Dimensions:
15" L (Pivot point to pivot point) x 2 arms
Color / Finish:
Black or Light Gray Powder Coated Finish
Warranty:
1 year from date of purchase
Shipping Method:
FedEx or UPS





DESCRIPTION WEIGHT CAPACITY PART NUMBER
Pole Mount (2.0" Dia) Dual Adjustable Arm, Light Gray 2-12 60226P-20-212-G
Pole Mount (2.0" Dia) Dual Adjustable Arm, Black 2-12 60226P-20-212-B
Pole Mount (1.5" Dia) Dual Adjustable Arm, Light Gray 2-12 60226P-15-212-G
Pole Mount (1.5" Dia) Dual Adjustable Arm, Black 2-12 60226P-15-212-B
  • Pivot Bracket, Attach Monitor to Arm (21-01)
  • Adaptor Plate, converts 75 x 75mm to 100 x 100mm (21-02)
  • Dual Adjustable Arm (26-31-52)
  • Pole Mount Bracket (25-40-Q) or (25-42-Q)
  • Split Sleeves (25-42-SS) Based on Pole Mount Diameter
  • Hardware
