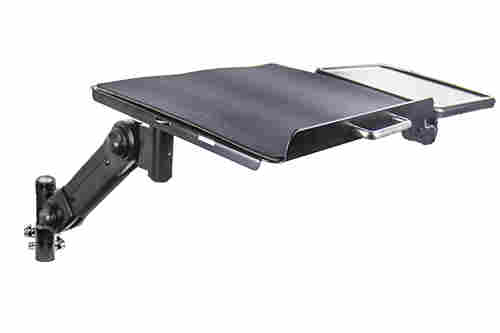

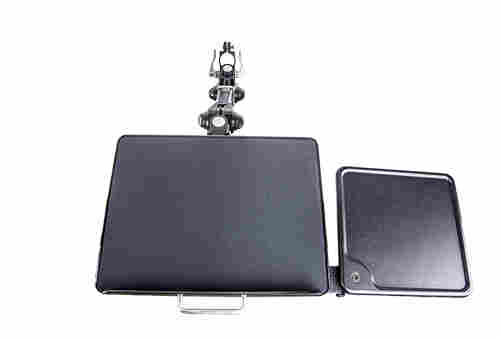

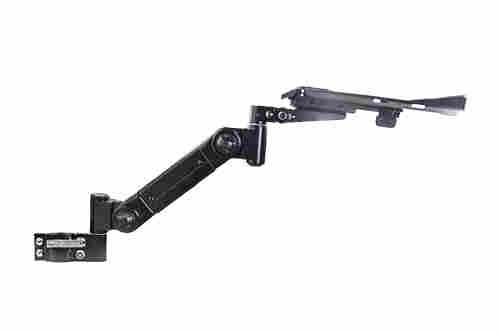

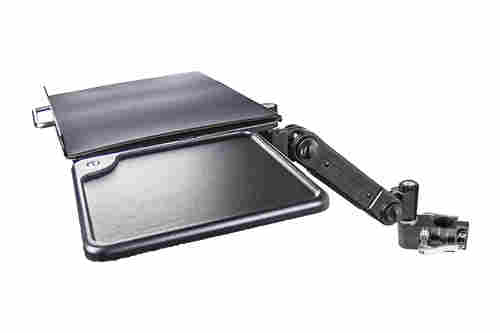

60223-P POLE MOUNTED LAPTOP PLATFORM WITH ADJUSTABLE ARM

The #60223-P is a pole mounted (metal) laptop platform configured with the adjustable arm for easy vertical positioning.

Weight capacity for this system is 5-15 lbs which supports most laptop models.  If more weight capacity is required, contact CPS.

The optional mouse tray will pivot and tilt independent of the laptop platform. The adjustable laptop platform mounting bracket provides swivel and tilt functions to provide perfect positioning for your laptop computer.

Mounting solutions available for 1", 1.5" or 2" diameter tubing (poles).  Note: If your poles are built from pipe instead of tubing, the standard pole mount brackets may not be compatible due to outside dimension variance.

CPS can provide poles that are worksurface, floor or ceiling mounted.  Pole Options

Arm color choices are light gray or black.

Reference the ORDER GUIDE tab in the section below to find the specific arm configuration that meets your application requirements.

Request Information

Mouse Tray Options



P-34-MT Mouse Platform

Classroom Training Table Hard Rock Maple

Bolt

Plastic Washer

Lock washer

Adjustable Nut

Bottom Nut



P24-12-10AB Mouse Platform

Classroom Training Table Hard Rock Maple

Bolts

Mouse Pad

Wire Mouse Catch



Modular Design
These arm systems consist of modular components that can be added or removed to meet the users specific application requirements.  Supporting your LCD display, keyboard, laptop or some other type of equipment can be accomplished with a variety of arm configurations found throughout this product section.
Material
Manufactured using high quality aluminum die castings and aluminum extrusions.  Built for commercial and industrial applications in a wide variety of industries, including manufacturing, electronics, medical, military, government, schools and universities.  The keyboard platform is manufactured from high impact phenolic for durability and cosmetic appeal.  Wrist rest is included.  The adjustable mouse tray is an option that can be ordered separately.
Finish
Industrial quality powder coat finish.  Most components available in light gray or black.  Keyboard platform is black only.
VESA Compatible
75mm or 100mm
Range of Motion
Adjustable Arm: Left / Right Pivot, 90-degree Vertical adjustment (vertical up to horizontal down). Laptop Tray: Left / Right Pivot, Forward / Back Tilt.
Easy to Install
Installation takes less than 15 minutes using common hand tools.







Part Number:
60223-P (See Order Guide tab for specifics)
Weight Capacity:
5-15 lbs.
Adjustable Arm Dimensions:
15" L (Pivot point to pivot point)
Laptop Tray Dimensions:
11-1/2" D x 14-1/2" W
Mouse Tray Dimensions
9" W x9" D
Color / Finish:
Black or Light Gray Powder Coated Finish
Warranty:
1 year from date of purchase
Shipping Method:
FedEx or UPS





DESCRIPTION WEIGHT CAPACITY PART NUMBER
Pole Mount (2.0" Dia) Adjustable Arm + Laptop Platform, Light Gray 5-15 60223P-20-AL-G
Pole Mount (2.0" Dia) Adjustable Arm + Laptop Platform, Black 5-15 60223P-20-AL-B

Pole Mount (1.5" Dia) Adjustable Arm + Laptop Platform, Light Gray 5-15 60223P-15-AL-G
Pole Mount (1.5" Dia) Adjustable Arm + Laptop Platform, Black 5-15 60223P-15-AL-B

Pole Mount (1.0" Dia) Adjustable Arm + Laptop Platform, Light Gray 5-15 60223P-10-AL-G
Pole Mount (1.0" Dia) Adjustable Arm + Laptop Platform, Black 5-15 60223P-10-AL-B

Request Information

  • Laptop Platform Pivot Bracket (21-14)
  • Laptop Platform (24-21)
  • Adjustable Arm (22-04-3)
  • Pole Mount Bracket (25-40-Q) or (25-42-Q)
  • Optional Mouse Tray (P-34MT) (P24-12-10AB)
  • Split Sleeves (25-42-SS) Based on Pole Mount Diameter
  • Hardware
