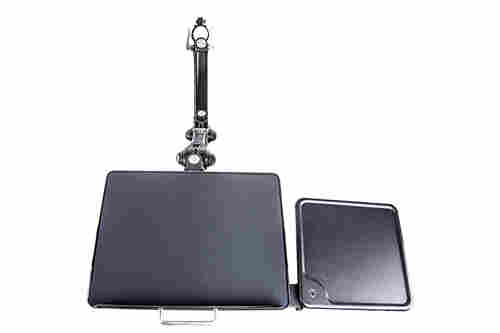

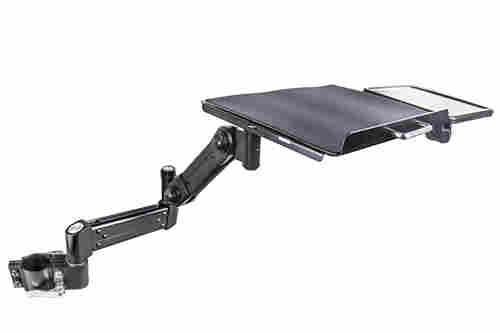

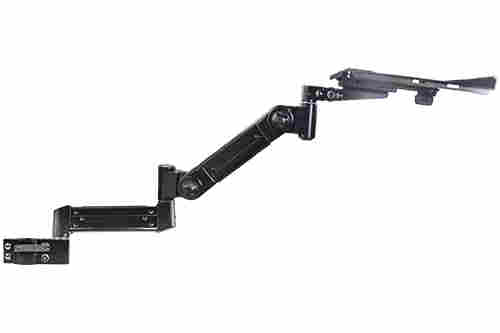

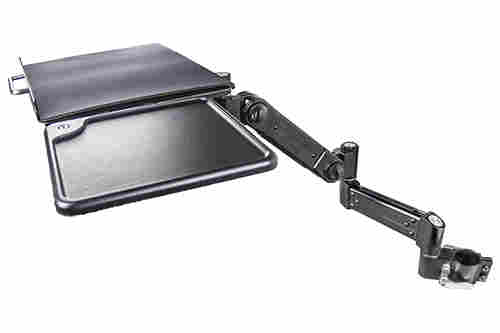

60222-PL POLE MOUNTED EXTENSION ARM AND ADJUSTALBLE ARM WITH LAPTOP PLATFORM AND MOUSE TRAY

The 60222-PL series combines a choice of 6-1/2", 10" or 18" extension arms plus the adjustable arm, laptop platform and optional mouse tray.

Both arms provide full left / right pivot.  The adjustable arm allows for vertical adjustment (vertical up to horizontal).  The laptop platform can pivot Left / right and tilt forward / back.

Mounting solutions available for 1", 1.5" or 2" diameter tubing (poles).  Note: If your poles are built from pipe instead of tubing, the standard pole mount brackets may not be compatible due to outside dimension variance.

CPS can provide poles that are worksurface or floor mounted. Weight capacity: 5-15 or 15-24 lbs.  Colors: Black or light gray.

Reference the ORDER GUIDE tab in the section below to find the specific arm configuration that meets your application requirements.

Request Information

Mouse Tray Options



P-34-MT Mouse Platform

Classroom Training Table Hard Rock Maple

Bolt

Plastic Washer

Lock washer

Adjustable Nut

Bottom Nut



P24-12-10AB Mouse Platform

Classroom Training Table Hard Rock Maple

Bolts

Mouse Pad

Wire Mouse Catch



Modular Design
These arm systems consist of modular components that can be added or removed to meet the users specific application requirements.  Supporting your LCD display, keyboard, laptop or some other type of equipment can be accomplished with a variety of arm configurations found throughout this product section.
Material
Manufactured using high quality aluminum die castings and aluminum extrusions.  Built for commercial and industrial applications in a wide variety of industries, including manufacturing, electronics, medical, military, government, schools and universities.  The keyboard platform is manufactured from high impact phenolic for durability and cosmetic appeal.  Wrist rest is included.  The adjustable mouse tray is an option that can be ordered separately.
Finish
Industrial quality powder coat finish.  Most components available in light gray or black.  Keyboard platform is black only.
VESA Compatible
75mm or 100mm
Range of Motion
Extension Arm: Left / Right Pivot.  Adjustable Arm: Left / Right Pivot, Up / Down Adjustment. Laptop Platform: Left / Right Pivot, Forward / Back Tilt. The mouse tray has it's own independent tilt & pivot function
Easy to Install
Installation takes less than 15 minutes using common hand tools.







Part Number:
60222-PL (See Order Guide tab for specifics)
Weight Capacity:
5-15 or 15-24 lbs. (Determined by weight of LCD display)
Adjustable Arm Dimensions:
15" L (pivot point to pivot point)
Extension Arm Dimensions:
10" Arm: 9-1/2"  /  18" Arm: 17-1/2" (from center of pivot points)
Laptop Platform Dimensions:
14-1/2" w " x 11-1/2"
Mouse Tray Dimensions
9" W x 9" D
Color / Finish:
Black or Light Gray Powder Coated Finish
Warranty:
1 year from date of purchase
Shipping Method:
FedEx or UPS



DESCRIPTION WEIGHT CAPACITY PART NUMBER
Pole Mount (2.0" Dia) 10" Extension Arm + Adjustable Arm + Laptop Platform, Light Gray 5-15 60222PL-20-10-AL-G
Pole Mount (2.0" Dia) 10" Extension Arm + Adjustable Arm + Laptop Platform, Black 5-15 60222PL-20-10-AL-B
Pole Mount (2.0" Dia) 18" Extension Arm + Adjustable Arm + Laptop Platform, Light Gray 5-15 60222PL-20-18-AL-G
Pole Mount (2.0" Dia) 18" Extension Arm + Adjustable Arm + Laptop Platform, Black 5-15 60222PL-20-18-AL-B

Pole Mount (2.0" Dia) 10" Extension Arm + Adjustable Arm + Laptop Platform, Light Gray 15-24 60222PL-20-10-AH-G
Pole Mount (2.0" Dia) 10" Extension Arm + Adjustable Arm + Laptop Platform, Black 15-24 60222PL-20-10-AH-B
Pole Mount (2.0" Dia) 18" Extension Arm + Adjustable Arm + Laptop Platform, Light Gray 15-24 60222PL-20-18-AH-G
Pole Mount (2.0" Dia) 18" Extension Arm + Adjustable Arm + Laptop Platform, Black 15-24 60222PL-20-18-AH-B

Pole Mount (1.5" Dia) 10" Extension Arm + Adjustable Arm + Laptop Platform, Light Gray 5-15 60222PL-15-10-AL-G
Pole Mount (1.5" Dia) 10" Extension Arm + Adjustable Arm + Laptop Platform, Black 5-15 60222PL-15-10-AL-B
Pole Mount (1.5" Dia) 18" Extension Arm + Adjustable Arm + Laptop Platform, Light Gray 5-15 60222PL-15-18-AL-G
Pole Mount (1.5" Dia) 18" Extension Arm + Adjustable Arm + Laptop Platform, Black 5-15 60222PL-15-18-AL-B

Pole Mount (1.5" Dia) 10" Extension Arm + Adjustable Arm + Laptop Platform, Light Gray 15-24 60222PL-15-10-AH-G
Pole Mount (1.5" Dia) 10" Extension Arm + Adjustable Arm + Laptop Platform, Black 15-24 60222PL-15-10-AH-B
Pole Mount (1.5" Dia) 18" Extension Arm + Adjustable Arm + Laptop Platform, Light Gray 15-24 60222PL-15-18-AH-G
Pole Mount (1.5" Dia) 18" Extension Arm + Adjustable Arm + Laptop Platform, Black 15-24 60222PL-15-18-AH-B

Request Information

  • Laptop Platform Pivot Bracket (21-14)
  • Laptop Platform (24-21)
  • Extension Arm 10" (22-03-3) or 18" (22-03-4)
  • Adjustable Arm (22-04-3) Light Duty or (22-04-5) Heavy Duty
  • Pole Mount Bracket (25-40-Q) or (25-42-Q)
  • Optional Mouse Tray (P-34MT) (P24-12-10AB)
  • Split Sleeves (25-42-SS) Based on Pole Mount Diameter
  • Hardware
