60222-P POLE MOUNTED LCD DISPLAY WITH ADJUSTABLE ARM AND 6-1/2", 1O" OR 18" EXTENSION ARM.

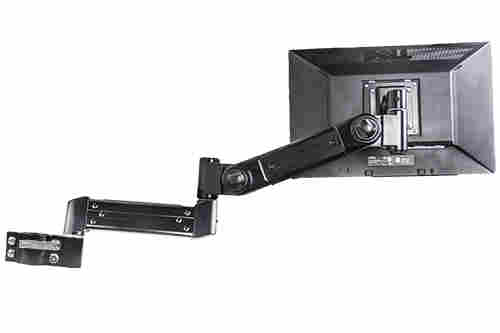

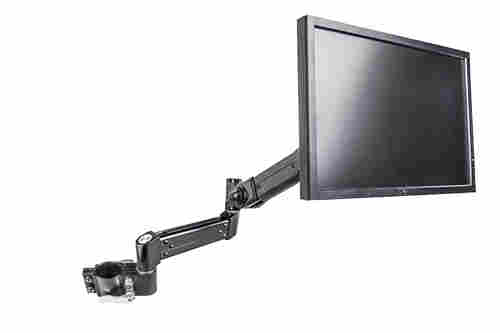

The #60222-P Pole Mounted LCD display arm is configured with the adjustable arm for easy vertical positioning, plus your choice of 6-1/2", 10" or 18" extension arm.

Weight capacity for this system is 5-15 or 15-24 lbs., depending upon the overall weight of your LCD display.  The weight your your LCD display determines the model required.

The adjustable arm provides vertical positioning from the vertical (Up) to horizontal (down) positions. The extension arm provides additional left right pivot and positioning options by utilizing 3 pivot points.  The LCD disply mounting bracket provides left / right pivot, forward / back tilt as well as portrait / landscape rotational positioning.

Mounting solutions available for 1", 1.5" or 2" diameter tubing (poles).  Note: If your poles are built from pipe instead of tubing, the standard pole mount brackets may not be compatible due to outside dimension variance.

CPS can provide poles that are worksurface, floor or ceiling mounted.  Pole Options

Arm color choices are light gray or black.

Reference the ORDER GUIDE tab in the section below to find the specific arm configuration that meets your application requirements.

Request Information



Modular Design
These arm systems consist of modular components that can be added or removed to meet the users specific application requirements.  Supporting your LCD display, keyboard, laptop or some other type of equipment can be accomplished with a variety of arm configurations found throughout this product section.
Material
Manufactured using high quality aluminum die castings and aluminum extrusions.  Built for commercial and industrial applications in a wide variety of industries, including manufacturing, electronics, medical, military, government, schools and universities.  The keyboard platform is manufactured from high impact phenolic for durability and cosmetic appeal.  Wrist rest is included.  The adjustable mouse tray is an option that can be ordered separately.
Finish
Industrial quality powder coat finish.  Most components available in light gray or black.  Keyboard platform is black only.
VESA Compatible
75mm or 100mm
Range of Motion
Extension Arm: Left / Right Pivot. Adjustable Arm:  90-degree Vertical adjustment (vertical up to horizontal down) Left / Right pivot,   LCD Display: Left / Right Pivot, Forward / Back Tilt, Portrait / Landscape rotation.
Easy to Install
Installation takes less than 15 minutes using common hand tools.









Part Number:
60222-P (See Order Guide tab for specifics)
Weight Capacity:
5-15 or 15-24 lbs. (Determined by LCD display weight)
Adjustable Arm Dimensions:
15" L (Pivot point to pivot point)
Extension Arm Dimensions
10": 9-1/2",  18": 17-1/2" (Pivot point to pivot point)
Laptop Tray Dimensions:
11-1/2" D x 14-1/2" W
Color / Finish:
Black or Light Gray Powder Coated Finish



Warranty:
1 year from date of purchase
Shipping Method:
FedEx or UPS







DESCRIPTION WEIGHT CAPACITY PART NUMBER
Pole Mount (2.0" Dia) 10" Extension Arm + Adjustable Arm, Light Gray 5-15 60222P-20-10-AL-G
Pole Mount (2.0" Dia) 10" Extension Arm + Adjustable Arm, Black 5-15 60222P-20-10-AL-B
Pole Mount (2.0" Dia) 18" Extension Arm + Adjustable Arm, Light Gray 5-15 60222P-20-18-AL-G
Pole Mount (2.0" Dia) 18" Extension Arm + Adjustable Arm, Black 5-15 60222P-20-18-AL-B

Pole Mount (2.0" Dia) 10" Extension Arm + Adjustable Arm, Light Gray 15-24 60222P-20-10-AH-G
Pole Mount (2.0" Dia) 10" Extension Arm + Adjustable Arm, Black 15-24 60222P-20-10-AH-B
Pole Mount (2.0" Dia) 18" Extension Arm + Adjustable Arm, Light Gray 15-24 60222P-20-18-AH-G
Pole Mount (2.0" Dia) 18" Extension Arm + Adjustable Arm, Black 15-24 60222P-20-18-AH-B

Pole Mount (1.5" Dia) 10" Extension Arm + Adjustable Arm, Light Gray 5-15 60222P-15-10-AL-G
Pole Mount (1.5" Dia) 10" Extension Arm + Adjustable Arm, Black 5-15 60222P-15-10-AL-B
Pole Mount (1.5" Dia) 18" Extension Arm + Adjustable Arm, Light Gray 5-15 60222P-15-18-AL-G
Pole Mount (1.5" Dia) 18" Extension Arm + Adjustable Arm, Black 5-15 60222P-15-18-AL-B

Pole Mount (1.5" Dia) 10" Extension Arm + Adjustable Arm, Light Gray 15-24 60222P-15-10-AH-G
Pole Mount (1.5" Dia) 10" Extension Arm + Adjustable Arm, Black 15-24 60222P-15-10-AH-B
Pole Mount (1.5" Dia) 18" Extension Arm + Adjustable Arm, Light Gray 15-24 60222P-15-18-AH-G
Pole Mount (1.5" Dia) 18" Extension Arm + Adjustable Arm, Black 15-24 60222P-15-18-AH-B

Request Information

  • Pivot Bracket, Attach Monitor to Arm (21-01)
  • Adaptor Plate, Converts 75 x 75mm to 100 x 100mm (21-02)
  • Extension Arm 10" (22-03-3) or 18" (22-03-4)
  • Adjustable Arm (22-04-3) Light Duty or (22-04-5) Heavy Duty
  • Pole Mount Bracket (25-40-Q) or (25-42-Q)
  • Split Sleeves (25-42-SS) Based on Pole Mount Diameter
  • Hardware
