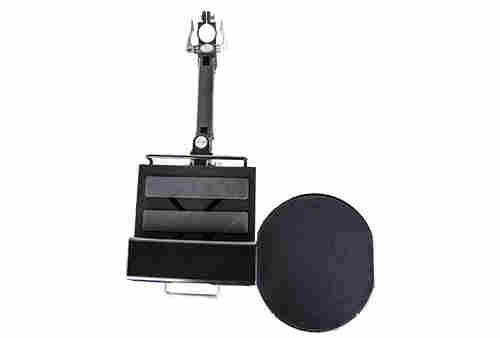

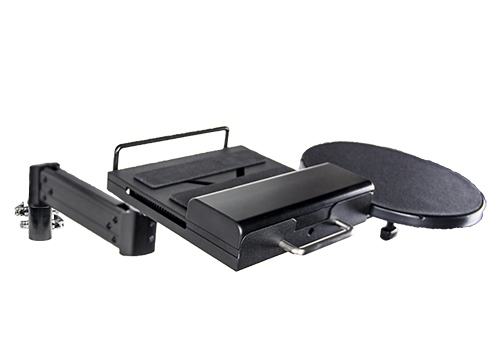

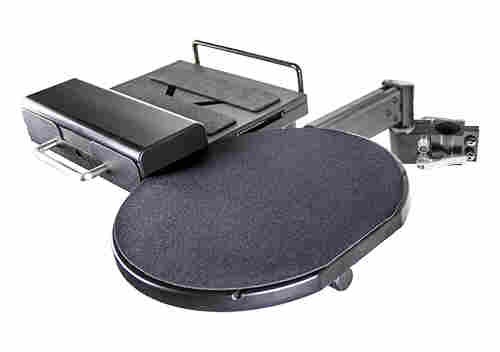

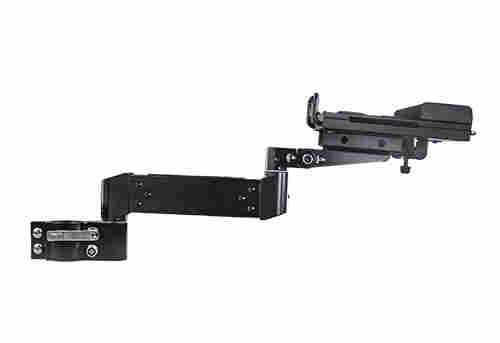

60218-PKC POLE MOUNTED EXTENSION ARM WITH KEYBOARD CLAMP AND MOUSE TRAY

The 60218-PKC is configured with a choice of a 6-1/2", 10" or 18" extension arm, combined with a keyboard clamp and mouse tray.  The keyboard clamp is an alternative to using a conventional platform, as the clamp securely holds the keyboard in place.

For applications where vibration, motion, air flow or high traffic may dislodge the keyboard, this clamp system is a perfect solution.

The wrist rest on this unit is manufactured from aluminum instead of foam, vinyl or gel for high durability for industrial applications.

Mounting solutions available for 1", 1.5" or 2" diameter tubing (poles).  Note: If your poles are built from pipe instead of tubing, the standard pole mount brackets may not be compatible due to outside dimension variance.

CPS can provide poles that are worksurface, floor or ceiling mounted.  Pole Options

Weight capacity: 28 lbs.  Colors: Black or light gray.

Reference the ORDER GUIDE tab in the section below to find the specific arm configuration that meets your application requirements.

Request Information





Modular Design
These arm systems consist of modular components that can be added or removed to meet the users specific application requirements.  Supporting your LCD display, keyboard, laptop or some other type of equipment can be accomplished with a variety of arm configurations found throughout this product section.
Material
Manufactured using high quality aluminum die castings and aluminum extrusions.  Built for commercial and industrial applications in a wide variety of industries, including manufacturing, electronics, medical, military, government, schools and universities.  The keyboard platform is manufactured from high impact phenolic for durability and cosmetic appeal.  Wrist rest is included.  The adjustable mouse tray is an option that can be ordered separately.
Finish
Industrial quality powder coat finish.  Most components available in light gray or black.  Keyboard platform is black only.
VESA Compatible
75mm or 100mm
Range of Motion
Extension Arm: Left / Right Pivot. Keyboard Clamp: Left / Right Pivot, Forward / Back Tilt.
Easy to Install
Installation takes less than 15 minutes using common hand tools.







Part Number:
60218-PKC (See Order Guide tab for specifics)
Weight Capacity:
28 lbs.
Extension Arm Dimensions:
6-1/2" Arm: 6"  10" Arm: 9-1/2"  /  18" Arm: 17-1/2" (from center of pivot points)
Keyboard Clamp Dimensions:
9-1/2" x 9-1/2"
Mouse Tray Dimensions
9" W x 9" D
Color / Finish:
Black or Light Gray Powder Coated Finish
Warranty:
1 year from date of purchase
Shipping Method:
FedEx or UPS





DESCRIPTION WEIGHT CAPACITY PART NUMBER
Pole Mount (2.0" Dia) 6.5" Extension Arm + Keyboard Clamp with Mouse Tray, Light Gray 28 60218PKC-20-65-G
Pole Mount (2.0" Dia) 6.5" Extension Arm + Keyboard Clamp with Mouse Tray, Black 28 60218PKC-20-65-B
Pole Mount (2.0" Dia) 10" Extension Arm + Keyboard Clamp with Mouse Tray, Light Gray 28 60218PKC-20-10-G
Pole Mount (2.0" Dia) 10" Extension Arm + Keyboard Clamp with Mouse Tray, Black 28 60218PKC-20-10-B
Pole Mount (2.0" Dia) 18" Extension Arm + Keyboard Clamp with Mouse Tray, Light Gray 28 60218PKC-20-18-G
Pole Mount (2.0" Dia) 18" Extension Arm + Keyboard Clamp with Mouse Tray, Black 28 60218PKC-20-18-B

Pole Mount (1.5" Dia) 6.5" Extension Arm + Keyboard Clamp with Mouse Tray, Light Gray 28 60218PKC-15-65-G
Pole Mount (1.5" Dia) 6.5" Extension Arm + Keyboard Clamp with Mouse Tray, Black 28 60218PKC-15-65-B
Pole Mount (1.5" Dia) 10" Extension Arm + Keyboard Clamp with Mouse Tray, Light Gray 28 60218PKC-15-10-G
Pole Mount (1.5" Dia) 10" Extension Arm + Keyboard Clamp with Mouse Tray, Black 28 60218PKC-15-10-B
Pole Mount (1.5" Dia) 18" Extension Arm + Keyboard Clamp with Mouse Tray, Light Gray 28 60218PKC-15-18-G
Pole Mount (1.5" Dia) 18" Extension Arm + Keyboard Clamp with Mouse Tray, Black 28 60218PKC-15-18-B

Pole Mount (1.0" Dia) 6.5" Extension Arm + Keyboard Clamp with Mouse Tray, Light Gray 28 60218PKC-10-65-G
Pole Mount (1.0" Dia) 6.5" Extension Arm + Keyboard Clamp with Mouse Tray, Black 28 60218PKC-10-65-B
Pole Mount (1.0" Dia) 10" Extension Arm + Keyboard Clamp with Mouse Tray, Light Gray 28 60218PKC-10-10-G
Pole Mount (1.0" Dia) 10" Extension Arm + Keyboard Clamp with Mouse Tray, Black 28 60218PKC-10-10-B
Pole Mount (1.0" Dia) 18" Extension Arm + Keyboard Clamp with Mouse Tray, Light Gray 28 60218PKC-10-18-G
Pole Mount (1.0" Dia) 18" Extension Arm + Keyboard Clamp with Mouse Tray, Black 28 60218PKC-10-18-B



Request Information

  • Keyboard Platform Pivot Bracket (21-14)
  • Extension Arm 6.5" (22-06-1), 10" (22-03-3), or 18" (22-03-4)
  • Pole Mount Bracket (25-40-Q) or (25-42-Q)
  • Keyboard Clamp (24-07-AB)
  • Mouse Tray (P24-12-10)
  • Split Sleeves (25-42-SS) Based on Pole Mount Diameter
  • Hardware
