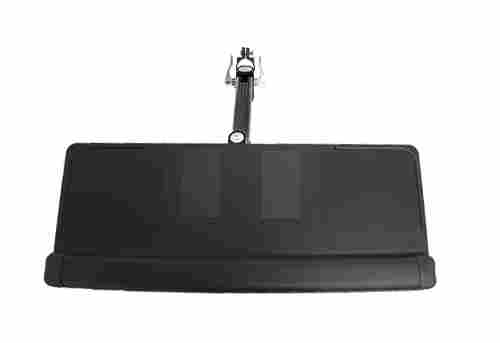

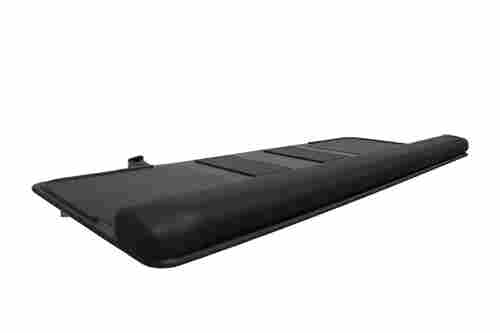

60218-P POLE MOUNT KEYBOARD PLATFORM WITH EXTENSION ARM

The #60218-P is a pole mounted Keyboard Platform and mouse tray.  May be ordered with either a 6-1/2", 10" or 18" long extension arm.

The adjustable keyboard platform mounting bracket provides swivel and tilt functions to provide perfect positioning for your application.

Mounting solutions available for 1", 1.5" or 2" diameter tubing (poles).  Note: If your poles are built from pipe instead of tubing, the standard pole mount brackets may not be compatible due to outside dimension variance.

CPS can provide poles that are worksurface, floor or ceiling mounted.  Pole Options

Color: Black or light gray. Weight capacity: 28 lbs.  Mouse tray is black only.

Reference the ORDER GUIDE tab in the section below to find the specific arm configuration that meets your application requirements.

Request Information



Modular Design
These arm systems consist of modular components that can be added or removed to meet the users specific application requirements.  Supporting your LCD display, keyboard, laptop or some other type of equipment can be accomplished with a variety of arm configurations found throughout this product section.
Material
Manufactured using high quality aluminum die castings and aluminum extrusions.  Built for commercial and industrial applications in a wide variety of industries, including manufacturing, electronics, medical, military, government, schools and universities.  The keyboard platform is manufactured from high impact phenolic for durability and cosmetic appeal.  Wrist rest is included.  The adjustable mouse tray is an option that can be ordered separately.
Finish
Industrial quality powder coat finish.  Most components available in light gray or black.  Keyboard platform is black only.
VESA Compatible
75mm or 100mm
Range of Motion
Extension Arm: Left / Right Pivot. Keyboard: Left / Right Pivot, Forward / Back Tilt.
Easy to Install
Installation takes less than 15 minutes using common hand tools.





Part Number:
60218-P (See Order Guide tab for specifics)
Weight Capacity:
28 lbs.
Extension Arm Dimensions:
6-1/2" Arm: 6"  10" Arm: 9-1/2"  /  18" Arm: 17-1/2" (from center of pivot points)
Keyboard Dimensions:
25" W x 10" D
Color / Finish:
Black or Light Gray Powder Coated Finish
Warranty:
1 year from date of purchase
Shipping Method:
FedEx or UPS



DESCRIPTION WEIGHT CAPACITY PART NUMBER
Pole Mount (2.0" Dia) 6.5" Extension Arm + Keyboard Platform, Light Gray 28 60218P-20-65-G
Pole Mount (2.0" Dia) 6.5" Extension Arm + Keyboard Platform, Black 28 60218P-20-65-B
Pole Mount (2.0" Dia) 10" Extension Arm + Keyboard Platform, Light Gray 28 60218P-20-10-G
Pole Mount (2.0" Dia) 10" Extension Arm + Keyboard Platform, Black 28 60218P-20-10-B
Pole Mount (2.0" Dia) 18" Extension Arm + Keyboard Platform, Light Gray 28 60218P-20-18-G
Pole Mount (2.0" Dia) 18" Extension Arm + Keyboard Platform, Black 28 60218P-20-18-B

Pole Mount (1.5" Dia) 6.5" Extension Arm + Keyboard Platform, Light Gray 28 60218P-15-65-G
Pole Mount (1.5" Dia) 6.5" Extension Arm + Keyboard Platform, Black 28 60218P-15-65-B
Pole Mount (1.5" Dia) 10" Extension Arm + Keyboard Platform, Light Gray 28 60218P-15-10-G
Pole Mount (1.5" Dia) 10" Extension Arm + Keyboard Platform, Black 28 60218P-15-10-B
Pole Mount (1.5" Dia) 18" Extension Arm + Keyboard Platform, Light Gray 28 60218P-15-18-G
Pole Mount (1.5" Dia) 18" Extension Arm + Keyboard Platform, Black 28 60218P-15-18-B

Pole Mount (1.0" Dia) 6.5" Extension Arm + Keyboard Platform, Light Gray 28 60218P-10-65-G
Pole Mount (1.0" Dia) 6.5" Extension Arm + Keyboard Platform, Black 28 60218P-10-65-B
Pole Mount (1.0" Dia) 10" Extension Arm + Keyboard Platform, Light Gray 28 60218P-10-10-G
Pole Mount (1.0" Dia) 10" Extension Arm + Keyboard Platform, Black 28 60218P-10-10-B
Pole Mount (1.0" Dia) 18" Extension Arm + Keyboard Platform, Light Gray 28 60218P-10-18-G
Pole Mount (1.0" Dia) 18" Extension Arm + Keyboard Platform, Black 28 60218P-10-18-B

Request Information

  • Keyboard platform mounting bracket (21-14)
  • Extension Arm 6.5" (22-06-1), 10" (22-03-3), or 18" (22-03-4)
  • Pole Mount Bracket (25-40-Q) or (25-42-Q)
  • Keyboard Platform (TS825CH)
  • Split Sleeves (25-42-SS) Based on Pole Mount Diameter
  • Hardware
