60217 WORKSURFACE MOUNTED TELESCOPING POLE

The 60217 is a telescoping pole mount for small LCD Displays.

This pole will telescope from 12" - 16".

Weight capacity: 5-24 lbs.

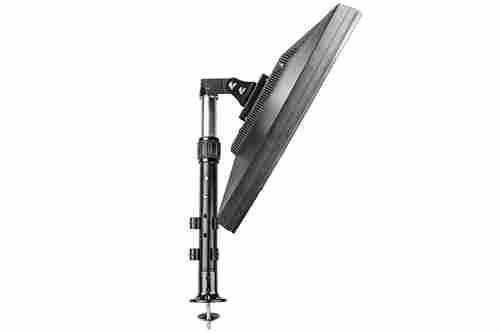

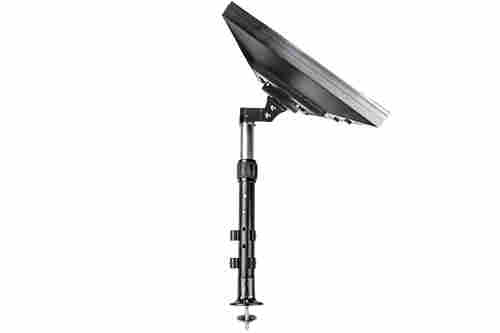

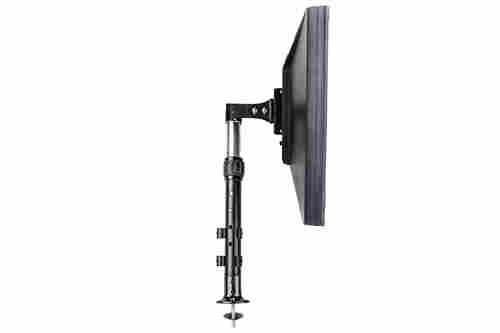

When mounting an LCD Display, the monitor can pivot left / right, tilt forward / back and rotate portrait / landscape.

The pole is spring loaded for easy vertical screen adjustment.

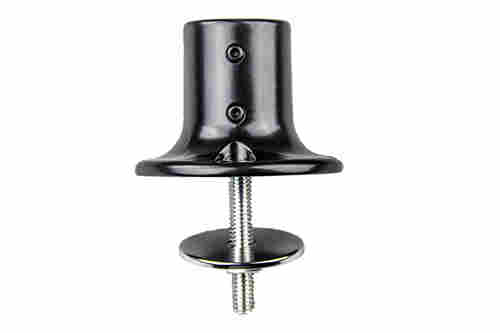

Die cast worksurface mounting bracket is included (requires drilling holes in the worksurface to mount).

Colors: Black or light gray.





Modular Design
These arm systems consist of modular components that can be added or removed to meet the users specific application requirements.  Supporting your LCD display, keyboard, laptop or some other type of equipment can be accomplished with a variety of arm configurations found throughout this product section.
Material
Manufactured using high quality aluminum die castings and aluminum extrusions.  Built for commercial and industrial applications in a wide variety of industries, including manufacturing, electronics, medical, military, government, schools and universities.  The keyboard platform is manufactured from high impact phenolic for durability and cosmetic appeal.  Wrist rest is included.  The adjustable mouse tray is an option that can be ordered separately.
Finish
Industrial quality powder coat finish.  Most components available in light gray or black.  Keyboard platform is black only.
VESA Compatible
75mm or 100mm
Range of Motion
LCD Display: left / right arm pivot, forward / back tilt. Pole: Height adjusts from 12" - 16" above the worksurface.
Easy to Install
Installation takes less than 15 minutes using common hand tools.





Part Number:
60217 (See Order Guide tab for specifics)
Weight Capacity:
5-24 lbs
Color / Finish:
Black or Light Gray Powder Coated Finish
Warranty:
1 year from date of purchase
Shipping Method:
FedEx or UPS





DESCRIPTION WEIGHT CAPACITY PART NUMBER
LCD Mount w/Die Cast Base, Short Telescoping Pole (12-16"), Light Gray 24 60217-G
LCD Mount w/Die Cast Base, Short Telescoping Pole (12-16"), Black 24 60217-B
  • Pivot Bracket, Attaches LCD Display to Arm (21-01)
  • Adaptor plate, Converts 75 x 75mm to 100 x 100mm (21-02)
  • Telescoping Pole (23-13)
  • Die Cast Grommet Pin (25-24)
  • Hardware
