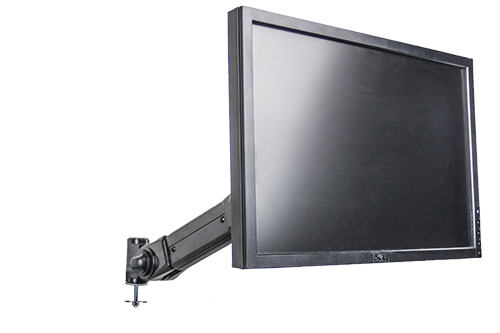

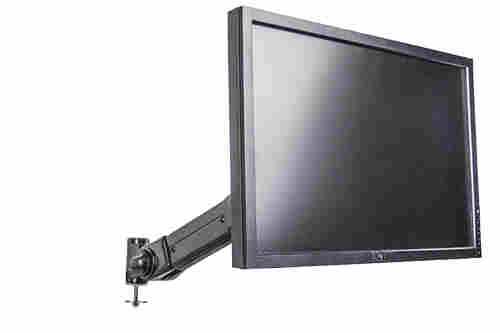

60210-GP WORKSURFACE MOUNTED LCD DISPLAY WITH ADJUSTABLE ARM

The #60210-GP Worksurface Mounted LCD Display arm, using our grommet pin, is configured with the adjustable arm for easy vertical positioning.

Weight capacity for this system is 5-15 or 15-24 lbs., depending upon the weight of your LCD display.

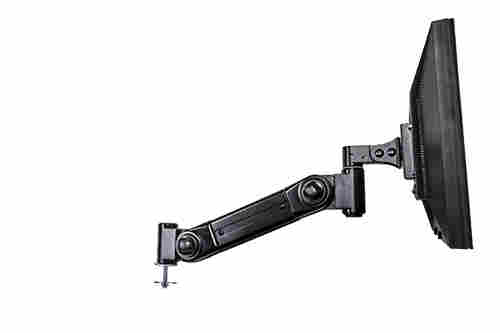

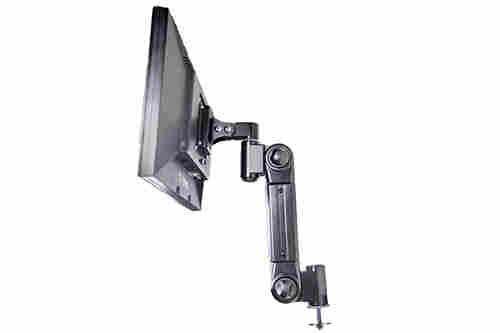

The adjustable arm provides vertical positioning from the vertical (Up) to horizontal (down) positions.  The monitor mounting bracket provides left / right pivot, forward / back tilt as well as portrait / landscape rotational positioning.

Arm color choices are light gray or black.

CPS can provide poles that are worksurface, floor or ceiling mounted.  Pole Options

Reference the ORDER GUIDE tab in the section below to find the specific arm configuration that meets your application requirements.





Modular Design
These arm systems consist of modular components that can be added or removed to meet the users specific application requirements.  Supporting your LCD display, keyboard, laptop or some other type of equipment can be accomplished with a variety of arm configurations found throughout this product section.
Material
Manufactured using high quality aluminum die castings and aluminum extrusions.  Built for commercial and industrial applications in a wide variety of industries, including manufacturing, electronics, medical, military, government, schools and universities.  The keyboard platform is manufactured from high impact phenolic for durability and cosmetic appeal.  Wrist rest is included.  The adjustable mouse tray is an option that can be ordered separately.
Finish
Industrial quality powder coat finish.  Most components available in light gray or black.  Keyboard platform is black only.

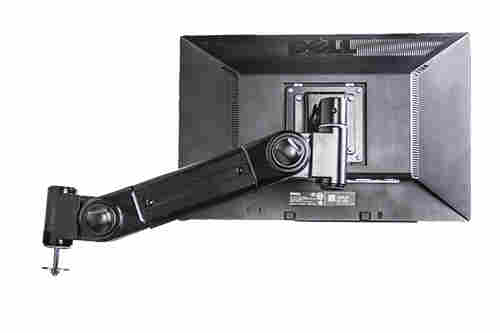

VESA Compatible
75mm or 100mm
Range of Motion
Adjustable Arm: Left / Right Pivot, 90-degree Vertical adjustment (vertical up to horizontal down). LCD Display: Left / Right Pivot, Forward / Back Tilt, Portrait / Landscape Rotation.
Easy to Install
Installation takes less than 15 minutes using common hand tools.







Part Number:
60212-GP (See Order Guide tab for specifics)
Weight Capacity:
5-15 or 15-24 lbs. (Determined by LCD display weight)
Adjustable Arm Dimensions:
15" L (Pivot point to pivot point)
Color / Finish:
Black or Light Gray Powder Coated Finish
Warranty:
1 year from date of purchase
Shipping Method:
FedEx or UPS





DESCRIPTION WEIGHT CAPACITY PART NUMBER
Worksurface Mount, Adjustable Arm, Grommet Pin, Light Gray 5-15 60210-GP-AL-G
Worksurface Mount, Adjustable Arm, Grommet Pin, Black 5-15 60210-GP-AL-B
Worksurface Mount, Adjustable Arm, Grommet Pin, Light Gray 15-24 60210-GP-AH-G
Worksurface Mount, Adjustable Arm, Grommet Pin, Black 15-24 60210-GP-AH-B

If you need this arm configuration with the #25-25 Die Cast Base, please contact CPS for part number and pricing.

  • Pivot Bracket, Attaches LCD Display to Arm (21-01)
  • Adaptor Plate, converts 75 x 75mm to 100 x 100mm (21-02)
  • Adjustable Arm (22-04-3) Light Duty or (22-04-5) Heavy Duty
  • Grommet Pin (25-22)
  • Hardware
