60210 Adjustable Arm, Worksurface mounted 60217 Short, telescoping pole, worksurface mounted 60223 Adjustable arm with laptop platform, worksurface mounted 60226 Dual Adjustable Arm, worksurface mounted 60228 Adjustable, raisable arm, worksurface mounted

LCD Monitor Arms

HORIZONTAL or WORKSURFACE MOUNT

For preconfigured mounting solutions

Download the Easy Order Guide below:

EASY ORDER GUIDE-410-NP.pdf

 GENERAL ORDER GUIDE-410.pdf





60210 SERIES-TABLE MOUNT

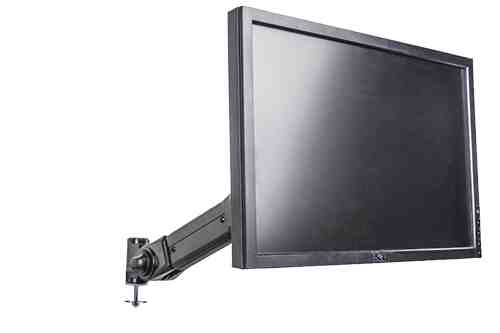

60210 Adjustable Arm, Worksurface-mounted

60210 Series  Adjustable LCD Monitor Arm

Mounted to horizontal surface.

  • Supports LCD's weighing 5 - 15  or 16 - 28 lbs.
  • Arm range of motion: 90 degrees
  • Monitor tilts forward /back, pivots left /right
  • Monitor also rotates portrait / landscape
  • VESA Compliant: 75x75, 100x100 and 100x200
  • Pole and Wall mount brackets available.
  • Standard colors: Light Gray or Black
25-01 C-Clamp Bracket

60210 Adjustable Arm, Worksurface-mounted, LCd in down-tilt postion

 60210 Adjustable arm, worksurface-mounted, LCD in back-tilt position

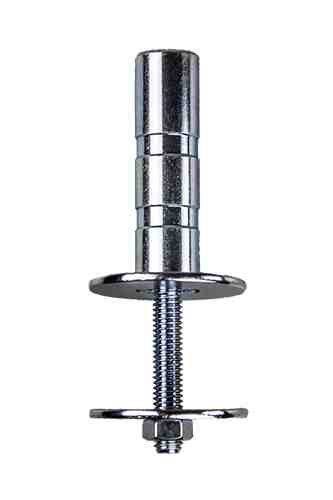

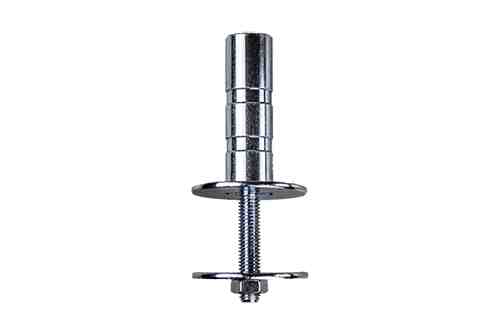

25-22 Grommet Pin
25-01 C-Clamp Downward Tilt Upward Tilt 25-22 Grommet Pin
For preconfigured mounting solutions
Download the Easy Order Guide below:
EASY ORDER GUIDE-410-NP.pdf
 GENERAL ORDER GUIDE-410.pdf
Assembly Instructions
60210 ASSEMBLY INSTRUCTIONS.pdf

60228 VERTICAL-RAISABLE ARM

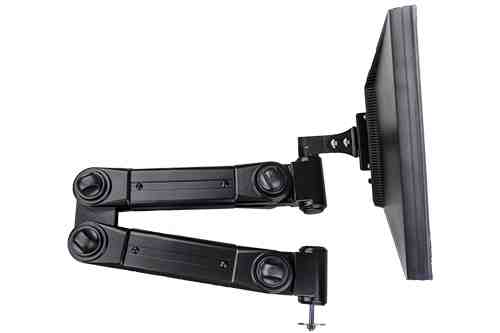

60228 Vertical, Raisable Arm, Full-Up positon, Worksurface-mounted

60228 Series

Vertical, Raisable LCD Monitor Arm

  • 2 pc. Adjustable LCD Arm, Vertically raisable.
  • Surface, pole or wall mountable.
  • Supports LCD's weighing capacity: 5-17 lbs.
  • Arm moves vertically, and Pivots 360 degrees.
  • Monitor tilts forward / back, pivots left / right
  • Monitor also rotates portrait / landscape
  • Standard colors: Light Gray or Black
25-01 C-Clamp Bracket 60228 Vertical, Raisable Arm, partial down positon, Worksurface-mounted 60228 Vertical, Raisable Arm, Full-Down positon, Worksurface-mounted 25-22 Grommet Pin
25-01 C-Clamp Mid Tilt Lower tilt 25-22 Grommet Pin
For preconfigured mounting solutions
Download the Easy Order Guide below:
EASY ORDER GUIDE-410-NP.pdf
GENERAL ORDER GUIDE-410.pdf
Assembly Instructions
60228 ASSEMBLY INSTRUCTIONS.pdf

60223 Adjustable Arm and Laptop

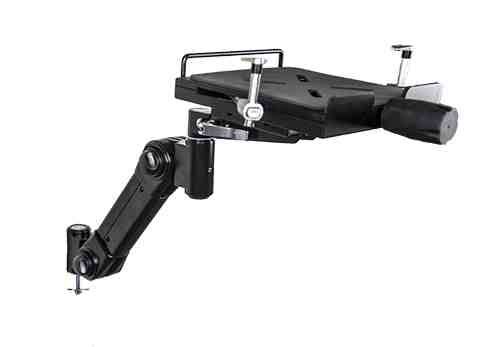

60223 Adjustable Arm with Laptop Platform, Worksurface-mounted.

60223 Series Adjustable Arm with Laptop Platform

Worksurface Mount

  • Arm range of motion: 90 degrees
  • Arm pivots left / right: 360 degrees
  • Platform tilts forward / back, pivots left / right
  • Metal Platform measures: 12" D x 15" W.
  • #24-06 Spring-Loaded Keyboard Platform
  • Multiple worksurface mounting brackets available
  • Pole and Wall mount brackets available.
  • Standard colors: Light Gray or Black



Worksurface Mounting Bracket 24-06 Spring-Loaded Laptop Clamp
25-01 C-Clamp Bracket
25-22 Grommet Pin

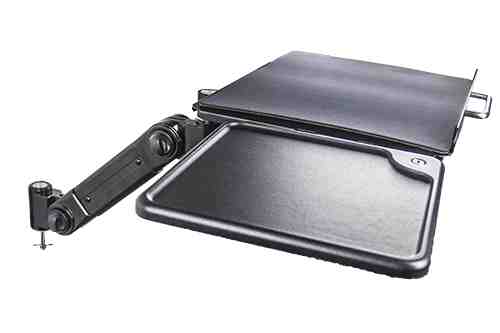

 #24-06 Spring-Loaded Laptop Clamp Optional #P24-12-10 Mouse Tray
25-01 C-Clamp 25-22 Grommet Pin Laptop Clamp  Mousetray

For preconfigured mounting solutions

Download the Easy Order Guide below:

EASY ORDER GUIDE-410-NP.pdf

GENERAL ORDER GUIDE-410.pdf

Assembly Instructions

60223 ASSEMBLY INSTRUCTIONS.pdf

#24-06 Spring-Loaded Laptop Platform.pdf



60226 Dual Adjustable Arm

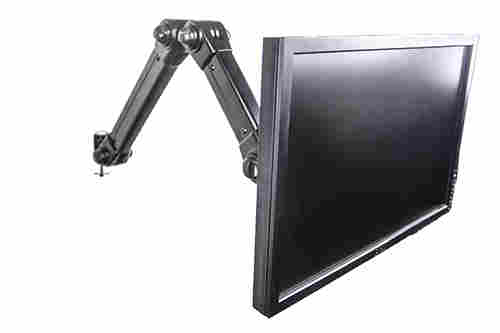

60226 Dual Adjustable Arm, Worksurface-mounted with die cast grommet

60223 Series Adjustable LCD Monitor Arm with Laptop Platform

Worksurface Mount

  • 180 degree Vertical Range of motion: Vertical (up) to vertical (down).
  • Weight capacity: 2-12 lbs.
  • Arm length: 35"
  • May be wall, pole or worksurface mounted.
  • No left / right pivot where arms meet in the center.
  • Pivots at each end (wall and monitor positons)
  • Pole or Worksurface mounting brackets available.
  • Vesa 75 x 75, 100 x 100 or 100 x 200 compliant



Worksurface Mounting Bracket 24-06 Spring-Loaded Laptop Clamp
25-01 C-Clamp Bracket
25-22 Grommet Pin
 #24-06 Spring-Loaded Laptop Clamp Optional #P24-12-10 Mouse Tray
25-01 C-Clamp 25-22 Grommet Laptop Clamp  Mousetray

For preconfigured mounting solutions

Download the Easy Order Guide below:

EASY ORDER GUIDE-410-NP.pdf

GENERAL ORDER GUIDE-410.pdf

Assembly Instructions

60223 ASSEMBLY INSTRUCTIONS.pdf

#24-06 Spring-Loaded Laptop Platform.pdf

60217 TELESCOPING POLE

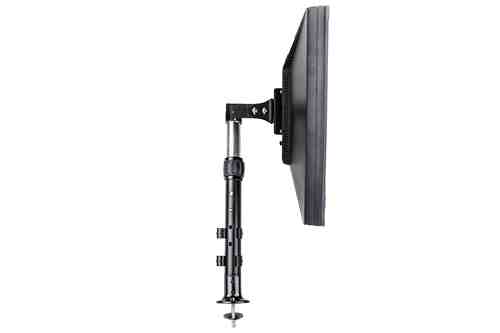

60217 Series, Short Telesoping Pole, worksurface mounted

60217 Series SHORT TELESCOPING POLE

WORKSURFACE-MOUNTED

  • Telescopes from 12 - 16 inches (from worksurface).
  • Forward and Back tilt.
  • Left and right pivot (360 degrees)
  • Rotate screen portrait / landscape.
  • Telescoping pole may be mounted to worksurface with:
  • Free-standing V-Base
  • #25-24 Die Cast Base (bolt or screw to worksurface).
  • Standard colors: Light gray or black
#23-13 Short Telescoping pole 60217 Short telescoping pole, worksurface mounted 25-24 Worksurface base for 23-13 telescoping pole
Telescoping pole 60217 w/ pole 60217 w/ u base Pole base

For preconfigured mounting solutions

Download the Easy Order Guide below:

EASY ORDER GUIDE-410-NP.pdf

GENERAL ORDER GUIDE-410.pdf

Assembly Instructions

60217 ASSEMBLY INSTRUCTIONS.pdf
