DENTAL AND MEDICAL FACILITIES

Dental Operatory applications shown on this page.

  • Mount LCD monitors, keyboards or Laptops

  • Configurations available for wall, pole, ceiling or floor mount applications.

  • Our standard light gray finish is an excellent match to most dental furniture.

For preconfigured mounting solutions

Download the Easy Order Guide below:



 EASY ORDER GUIDE-410-NP.pdf

GENERAL ORDER GUIDE-410.pdf

TRACK MOUNT ORDER GUIDE-410.pdf

POLE MOUNT ORDER GUIDE-410.pdf








DENTAL AND MEDICAL APPLICATIONS (Primary)


DENTAL INSTALLATIONS

 TYPICAL DENTAL OPERATORY CONFIGURATIONS



60226 Series, Dual Adjustable Arm. Pole Mounted



Click on images for larger view

LCD pole mounted with 6 inch extension arm
LCD Pole mounted using 18 inch extension arm and 15 inch adjustable arm
18 inch extension arm and 15 inch adjustable arm, pole mounted
Drop-down keyboard platform mounted to 10 inch extension arm and pole
LCD pole mounted in patient viewing position
18 inch extension arm and 15 inch adjustable arm, pole mounted



Additional examples of arm configurations

used in Dental operatories



Click on images for larger view

Adjustable Arm with laptop platform, Wall or pole Mounted

 Adjustable Arm

 Laptop Tray
Extension arm with laptop platform, wall mounted. 6, 10 or 18 inch extension arms available. Wall or pole mount

 Extension Arm

Laptop Tray
2 LCD displays installed back-to-back on telescoping, ceiling mounted pole
Ceiling Mounted Pole
Mount 1-4 LCD's
LCD and Keyboard installed on adjustable arm. Wall or pole mount
LCD + Keyboard
Wall Mounted
Adjustable Arm
60251 series mobile cart with adjustable height worksurface. CPU and LCD mounting options can be added as required.
60251 Mobile Cart

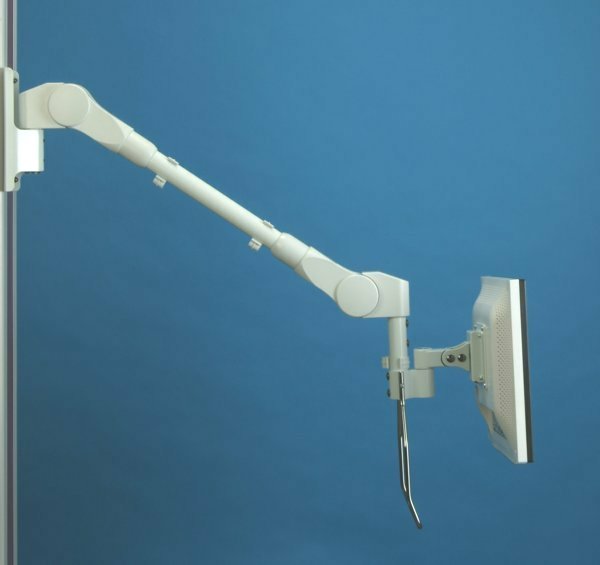

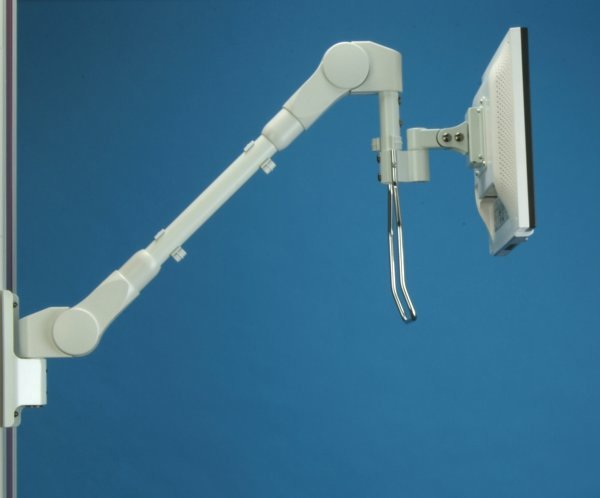

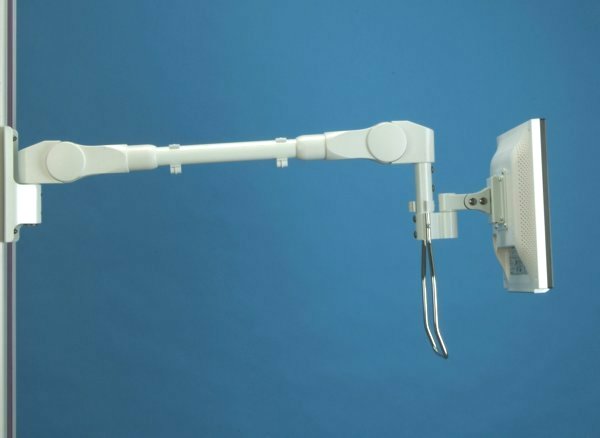

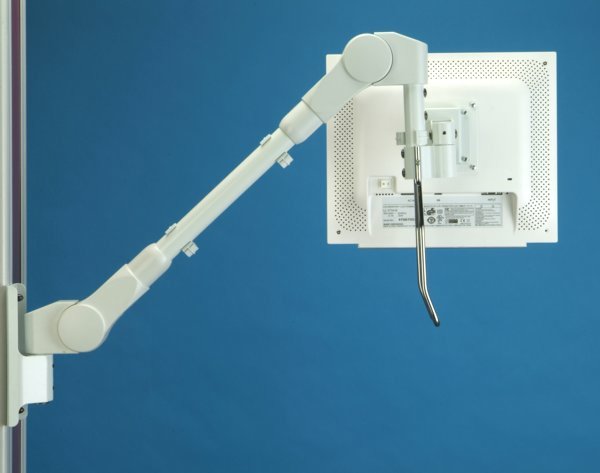

LCD mounted on adjustable arm. Wall or pole mount
Adjustable Arm
Wall Mount





For preconfigured mounting solutions

Download the Easy Order Guide below:
