ESD WORKSTATION GROUNDING DEVICES

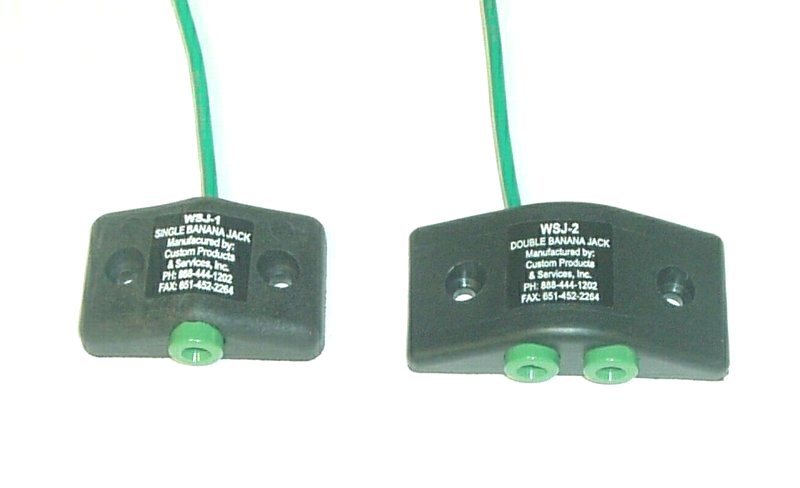

WSJ-1 Single Banana Jack and WSJ-2 Double Banana Jack

The WSJ series Ground jacks

utilized on workbenches or carts.
WGK series Workstation Grounding Kits

WGK series Workstation Ground Systems

Everything you need to ground your ESD workbench




WORKSTATION GROUNDING DEVICES (Primary)


WSJ SERIES GROUND JACKS FOR USE WITH WRIST STRAPS

Click on image for larger view

WSJ SERIES GROUND JACKS

  • Available in Single or Double Banana Jack Styles
  • Comes standard with 8 ft. ground wire, terminals and hardware.
  • Mounts under worksurface for use with ESD wrist straps

GROUND JACKS

WORKSTATION GROUNDING KITS

WORKSTATION GROUNDING KITS

Everything you need to ground the worksurface and technician

(WGK-400 Kit shown above)

#WGK-100 WORKSTATION GROUNDING KITS

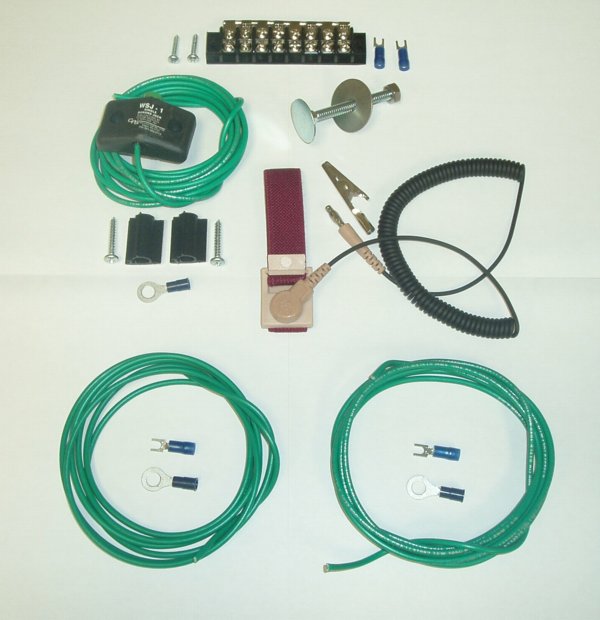

WGK-100 Workstation Grounding Kit

Click on image for larger view

WGK-100 includes:

  • 1  WSJ-1 Single banana Jack Ground Blocks
  • 1  wrist strap & 6 ft. coil cord
  • 1 common point ground
  • 1 worksurface ground bolt
  • All installation hardware

WGK-100 SCHEMATIC.pdf

#WGK-200 WORKSTATION GROUNDING KITS

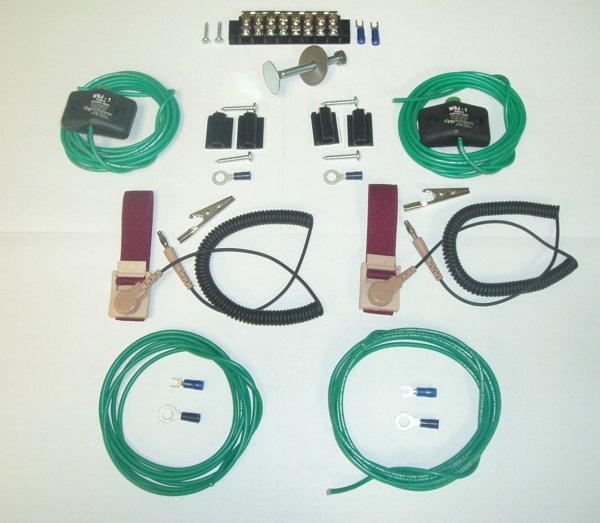

WGK-200 Workstation Grounding Kit

Click on image for larger view

WGK-200 includes:

  • 2  WSJ-1 Single banana Jack Ground Blocks
  • 2  wrist strap & 6 ft. coil cord
  • 1 common point ground
  • 1 worksurface ground bolt
  • All installation hardware

WGK-200 SCHEMATIC.pdf

#WGK-300 WORKSTATION GROUNDING KITS

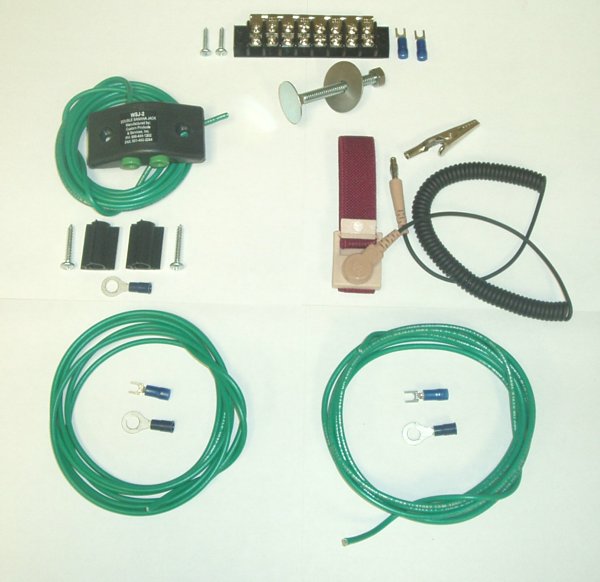

WGK-300 Workstation Grounding Kit

Click on image for larger view

WGK-300 includes:

  • 1  WSJ-2 Double banana Jack Ground Blocks
  • 1  wrist strap & 6 ft. coil cord
  • 1 common point ground
  • 1 worksurface ground bolt
  • All installation hardware

WGK-300 SCHEMATIC.pdf

#WGK-400 WORKSTATION GROUNDING KITS

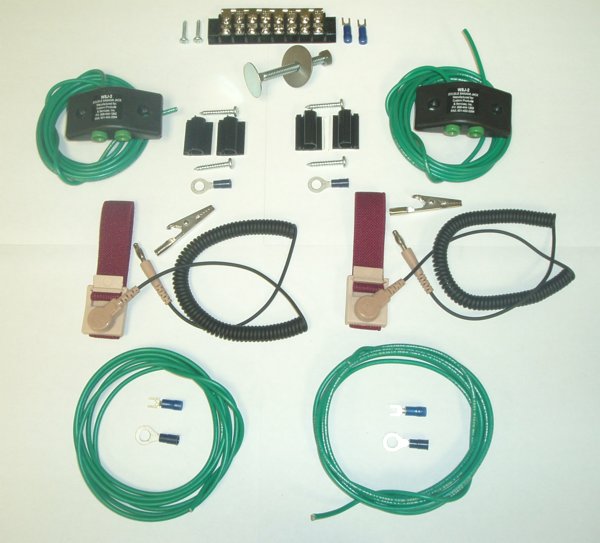

WGK-400 Workstation Grounding Kit

Click on image for larger view

WGK-400 includes:

  • 2  WSJ-2 Double banana Jack Ground Blocks
  • 2  wrist strap & 6 ft. coil cord
  • 1 common point ground
  • 1 worksurface ground bolt
  • All installation hardware

WGK-400 SCHEMATIC.pdf




WGK-GROUND KITS
