DUST COLLECTORS FOR LABS


VANIMAN

WORKING TO SOLVE A PROBLEM YOU DON'T EVEN KNOW YOU HAVE !

VAN-I-VAC, Single Station Unit

VOYAGER and ABRASIVE-VAC Series Dust Collectors for 1-2 stations

Stonevac II, Single Station NEW V-6 System for 1-6 stations

  VAN-I-VAC series

  for single stations

VOYEGER and

  ABRASIVE VAC Series

for 1-2 stations

  STONEVAC II

 Single station

  V-6

  1-6 Stations

 VANIMAN DUST COLLECTORS FOR LAB & INDUSTRIAL APPLICATIONS



VANIMAN Dust collection is intended to capture nuisance, harmful or precious  material in any facility that has

or creates such material.  In some cases, dust collection is a safety requirement, but in most cases

dust collection creates a cleaner and more productive work environment.



It's important to consider the type and size of the attachment or work area, the type of filtration

needed (HEPA, Odor, Pre-Filter), and the sound level required.



Reference the chart in this section to begin selecting a dust collector for your facility or application.



Catalogs and data sheets available in each product section.

NOT SURE WHICH DUST COLLECTOR TO USE?

Download the Questionaire (below) and return it to us.  We will help you select the correct model.



DUST COLLECTION QUESTIONNAIRE.pdf  (Acrobat file)

DUST COLLECTION QUESTIONNAIRE.xls  (Excel file)

TECHNICAL TIPS - DUST COLLECTION SYSTEMS
  Dust Collection-milling zirconium.pdf
  Filter Bag Maintenance.pdf
  Cyclone Pre-Filters.pdf

  CPS PRODUCT LINE SHEET-2009.pdf




DUST COLLECTORS-INDUSTRIAL

VANIMAN

DUST COLLECTION SYSTEMS- INDUSTRIAL

For Dust, Metal Grindings, Dry Powders, Precious MetalS

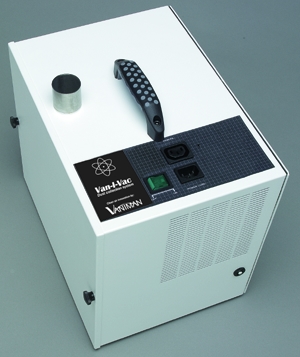

VAN-I-VAC

(Shown with optional Accumulator)

VAN-I-VAC Dust Collection System

More info

  • Single Station
  • Single Speed
  • Only 53 db
  • Optional Accumulator Prefilter

Specifically designed for use

with micro-abrasive blasters

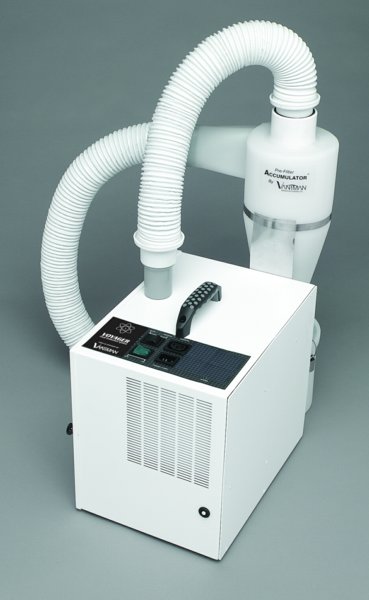

VOYAGER

Vaniman Voyager Dust Collection System

More info

  • 1 or 2 Stations
  • Multi-Speed
  • Optional Accumulator prefilter

Specifically designed for use

with micro-abrasive blasters




ABRASIVE VAC

Vaniman Abrasive Vac Dust Collection System

More info

  • Includes Accumulator Pre-Filter
  • Powerful suction
  • Quiet Operation (55 dbA)
  • Single Station
  • Single Speed
  • Foot remote included

Specifically designed for use

with micro-abrasive blasters

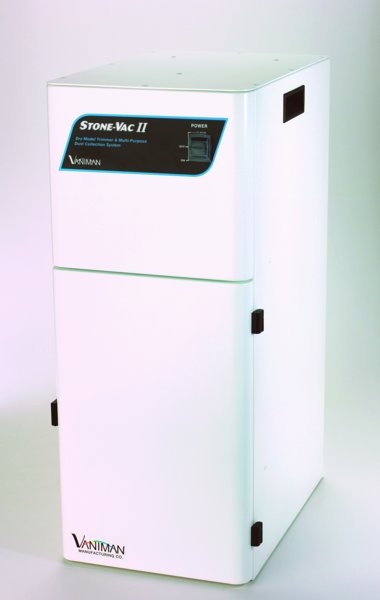

STONE-VAC II

Vaniman Stone-Vac II Dust Collection System

More info

  • Single Station
  • Single Speed
  • HEPA cartridge filter
  • Electronic filter
  • Specifically designed for the following:
    • Die Stone Use
    • Micro-Abrasive Blasters
    • Procelain
    • All other dry material

Specifically designed for use

with micro-abrasive blasters

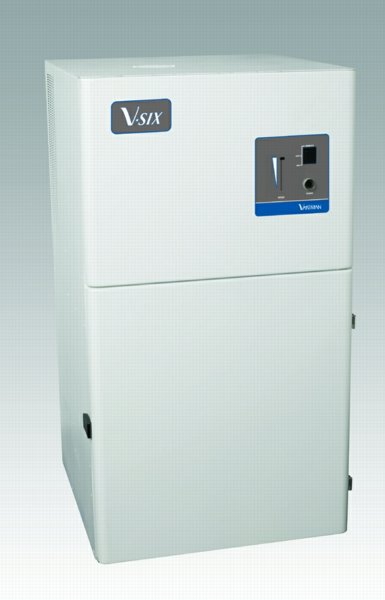

V-6 FILTRATION SYSTEM

NEW

Vaniman V-6 Dust Collection System

More info

  • Filtration system for 1 - 6 stations
  • Brushless motor
  • Variable speed
  • HEPA filter cartridge
  • AIR PULSE filter maintenance system
  • Large removeable dust tray



DUST COLLECTORS-ACCESSORIES

VANIMAN

SPECIAL APPLICATIONS- INDUSTRIAL

For Dust, Metal Grindings, Dry Powders

Precious Metal, Welding & Solder fumes

NEW DOWNDRAFT ACCESSORY

USE WITH ANY OF OUR

DUST COLLECTION SYSTEMS

 Downdraft installed on workbench

  • #96044 Downdraft Accessory
  • Benchtop applications
  • Easy to replace window
  • High suction
  • Ergonomic design
  • Comfortable hand rests

SPLASH-VAC

Splash Vac with Light and fan.

  • #96046
  • Self-contained dust collector
  • Fan & filter included
  • Adjustable clear shield
  • Removeable dust tray
  • Rugged molded plastic
  • For very light duty applications

SPLASH HOOD with Light

Splash Guard with light. Use with Dust Collectors

  • #95045
  • Use with any of our Dust Collector Vacuums
  • Adjustable Clear Shield
  • Rugged, molded plastic body
  • Accepts 2-1/2" diameter hose



BENCH FRONT and BENCH TOP ACCESSORIES

Fishmouth with plexiglass splash guard

Jet Port

10503 Fishmouth + Guard VMC-A441 Jet Port

Fishmouth

Polyguard

VMC-A395 Fishmouth VMC-A397 PolyGuard

Mobile Jet Port

Splash Guard

VMC-A442 Mobile Jet Port VMC-A470 SplashGuard

Flex Shield

Flexible hose kit

VMC-A391 Flex Shield 96026 Flexible Hose Kit








DUST COLLECTOR APPLICATION CHART

DUST COLLECTOR APPLICATION CHART


 APPLICATION
PRODUCTS

Grinding,

Dry Powder,

Sanding precious

metals

Micro-Abrasive

Blaster

High Production

All types of debris

 Van-I-Vac  *
 Voyager  *
 Abrasive Vac  *  *
 Stone Vac II  *  *  *
V-6 * * *



 SPECIFICATIONS
PRODUCTS Work Stations Plumbing Size Maximum plumbing run

Van-I-Vac

1 1 @ 1-1/2" 6 ft
Voyager 1-2

1 @ 2-12"

2 @ 1-1/2"

8 ft
Abrasive Vac 1 1 @ 1-1/2"-2-1/2" 6 ft
Stone Vac II 1-4

1 @ 1-1/2" - 3"

2@ 1-1/2" - 2-1/2"

3-4 stations - Call

10 ft
V-6 2-6

2 @ 4"

4 @ 2-1/2"

4 @ 3"

5-6 Stations - CALL

Will be specified

when application

is detailed

NOT SURE WHICH DUST COLLECTOR TO USE?

Download the Questionaire (below) and return it to us.  We will help you select the correct model.



DUST COLLECTION QUESTIONNAIRE.pdf  (Acrobat file)

DUST COLLECTION QUESTIONNAIRE.xls  (Excel file)





LOOKING FOR A MICRO-ABRASIVE BLASTER?

DO YOU NEED A MICRO-ABRASIVE BLASTER

THAT WORKS WITH THESE DUST COLLECTION

SYSTEMS? CLICK ON THE PHOTOS BELOW

TO TAKE YOU TO THE BLASTER SECTION.





(Photo Links below will open in a new window)



PROBLAST MICRO-ABRASIVE BLASTER

PROBLAST II MICRO-ABRASIVE BLASTER
PROBLAST 3 MICRO-ABRASIVE BLASTER

MOBILE MICRO-ABRASIVE BLASTER
