POWERFLOR CABLE MANAGEMENT COMPONENTS AND CONFIGURATIONS



JUST SUPPOSE.... You were able to deliver POWER and CONNECTIVITY to your staff's workspace...

When they need it.... How they need it.... Where they need it...

Without any tradesmen or tools... and do it in minutes, not days



TYPICAL INSTALLATION PROCEDURE

Clean and prepare concrete floor

Prepare to install Volara foam onto concrete floor.

Roll-out Volara foam in preparation to set pedetals

Set carpeted pedestals in a grid format beginning in 1 corner of the room
Clean & Prepare concrete floor Prepare to install Volara Foam Roll-out Foam Set pedestals in Grid format

Cut and fit edge trim panels to fill areas around posts and along walls where needed

Install the field cut edge tiles

Cut and trim carpet to be attached to edge trim.

Trim carpet around any protruding objects or posts
Cut Edge Trim Tiles Install Edge Trim Tiles Install carpet on Edge Tiles Trim carpet around obstructions

Layout pre-numbered cables to match electrical, data or voice grommets in the pedestals.

Raise the tiles required to set the cable in place and connect to the plug-and-play outlet ports.

Reset the tiles to cover the cables

Completed installation
Lay-out Cables on top of floor Lift Tiles, Set cables Lift tiles, connect cables Completed floor



For more detailed information

  POWERFLOR OVERVIEW CATALOG.pdf

POWERFLOR INSTALLATION MANUAL.pdf

To receive a quote for your facility:

POWERFLOR SITE SURVEY.pdf

POWERFLOR SITE SURVEY.xls

How to get a quote for your facility

1. Download and complete the Site Survey form (above)

2. Fax (651-452-2264) or e-mail (info@custom-products.com) survey form to Custom Products

3. Please include a dimensional drawing of the room where the Powerflor is to be used.

4. We will provide a complete CAD drawing with bill of materials for your review.

All quotes include on-site installation by an authorized, certified Powerflor installation crew.





ELEMENTS / COMPONENTS OF THE POWERFLOR SYSTEM


PowerFlor Components (Primary)


CARPETED TILES

Top view or 4 Powerflor Pedestals. Shown without power, data or voice outlets Underside view of Powerflor pedestal



CARPETED PEDESTALS

  • Polycarbonate floor panel sections measures 50cm x 50cm x 3" High.
  • (50cm = 19.68")
  • Pedestal includes carpet tile attached via pressure-sensitive adhesive.
  • Volara foam is placed on the concrete floor to provide an interface.
  • Each panel section is then set in place.
  • The tiles are NOT permanently attached to the floor.
  • Pedestals are tested to support 41,000 p.s.i. (1140 lb/sq/in)
  • Class A fire rated under UL94 listing.
  • Perimeter panels, ramps and railings are standard options.
  • Entire system protected with 15 year warranty.







For more detailed information

  POWERFLOR OVERVIEW CATALOG.pdf

POWERFLOR INSTALLATION MANUAL.pdf


Carpeted Tiles

TILE WITH OUTLET INSTALLED

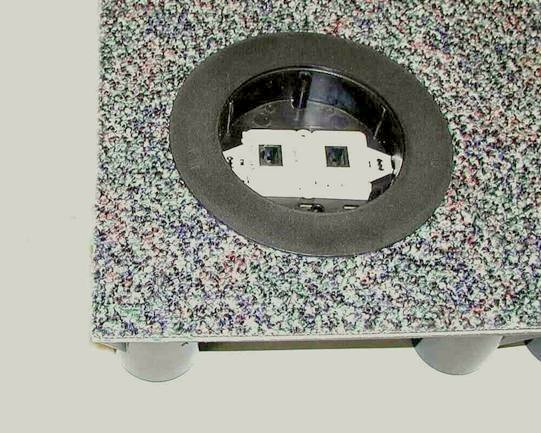

Top view of 4 Powerflor pedestals with outlet grommets installed Powerflor pedestal with voice-data outlet installed. Cover plate not shown

PEDESTAL WITH OUTLET INSTALLED

  • Outlets (data, voice or electrical) shown above.
  • Modules simply snap into pedestal opening.
  • Plug and play pigtail connects to main harness.
  • Outlet locations are 9" on-center in both directions
  • 4 circuit, true 20 Amp power sytem.
  • Totally plug & play CAT 5E preterminated cables.
  • No field punch-down wiring required.
  • Fiber, pre-terminated cabling.
  • All data/Comm systems are TIA/EIA compliant and UL listed.
  • Relocate any outlet exactly where you want it, without rewiring or replacing.
  • Eliminates power poles, cores drilled through slab, furniture raceways.
  • Complete turn-key system, including on-site installation.



For more detailed information

  POWERFLOR OVERVIEW CATALOG.pdf

POWERFLOR INSTALLATION MANUAL.pdf


TILE WITH OUTLET INSTALLED

PERIMETERS AND POWER PORTS

Powerflor perimeter panels. Field cut these panels to fill voids next to walls or obstuctions in the room.

POLYCARBONATE PERIMETER PANELS

  • Designed to be field-cut
  • Fills in odd dimensions, radius or angles
  • Install along wall, next to posts, curved surfaces

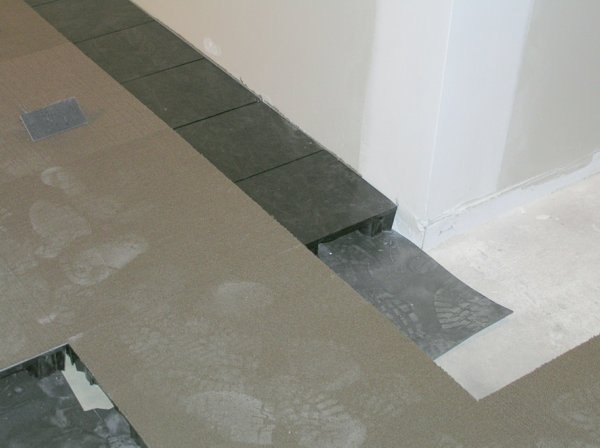

Perimeters installed along wall. Carpet will be cust and installed as the last step

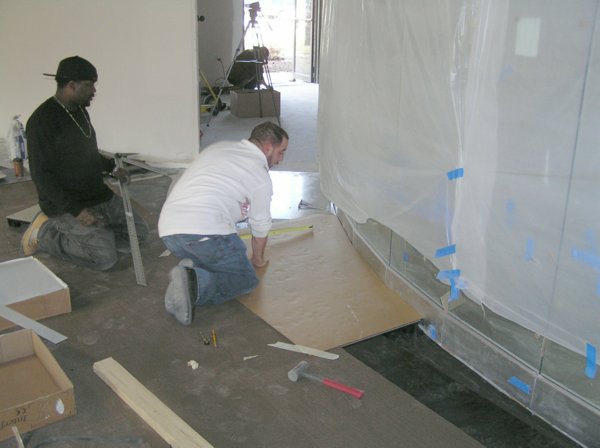

Cutting perimeters to conform to a curved wall. Carpet will be cut and installed as a last step.


POWER PORTS



  • Universal Mounting Grommet
  • Pre-installed in pedestal
  • Used with electrical, voice or data outlets
  • Maximum of 4 ports per pedestal

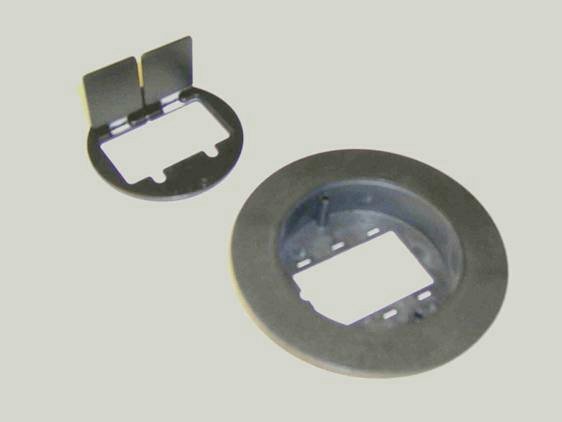

Power port grommets and cover plate



For more detailed information

  POWERFLOR OVERVIEW CATALOG.pdf

POWERFLOR INSTALLATION MANUAL.pdf


PERIMETERS-POWER-PORTS

HARNESS AND CABLES

Electrical, data and voice harness

HARNESS AND CABLES

  • Interconnecting harness
  • Provided as power input whips or double ended.
  • Connects 2 junciton boxes.
  • Fully plug & play.
  • All duplex outlets are numbered to identify circuits.
  • Cannot be connected incorrectly



Data Comm Cables

DATA COMM CABLES

  • Consists of modular communications outlet and connection insert.
  • Cables are preterminated, Cat 5 or Cat 6, 4 UTP copper.
  • Cables provided with mod-edge connector on 1 eand, RJ45 on the other.
  • Fully plug & play.
  • No field punch-down wiring required.
  • Components may be changed easily



For more detailed information

  POWERFLOR OVERVIEW CATALOG.pdf

POWERFLOR INSTALLATION MANUAL.pdf


HARNESS AND CABLES

RAMPS, RAILS & TRIM

RAMPS, RAILS & TRIM

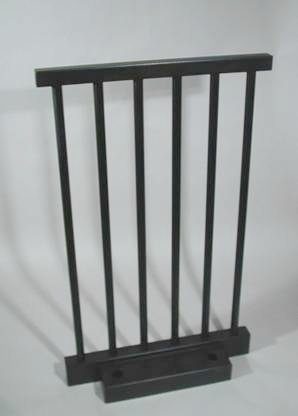

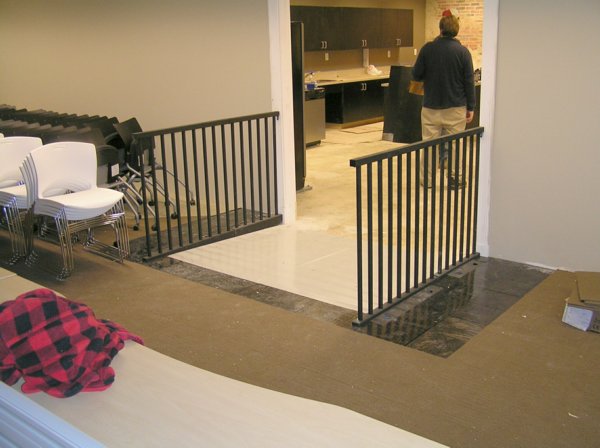

Railings Ramp and railing. ADA or Non-ADA ramps available



The Powerflor system is completed with elements that provide

access and trim the floor whenever needed.



  • Full selection of both NON-ADA and ADA Ramps
  • NON-ADA ramps is 1/6 slope x 18" Long
  • ADA ramps ramps are 1/12 slope x 36" Long or 1/20 x 52"
  • Z-Trim for edging the system when not being stopped by wall.
  • Railings available in 2' & 3' lengths and attach end-to-end.



For more detailed information

  POWERFLOR OVERVIEW CATALOG.pdf

POWERFLOR INSTALLATION MANUAL.pdf




RAMPS-RAILS

ELECTRICAL ELEMENTS

ELECTRICAL ELEMENTS

Power Port Grommet and cover plate

Angled data outlets. Gets installed in power port grommet
 Power Ports Angled Data Outlets

Data outlet installed in power port grommet

Angled adaptor plate, bottom view, installed in power port grommet
 Data Outlet in Power Port  Angled Adaptor Plate

Duplex outlet installed in power port grommet

Data outlet installed in power port grommet
 Duplex Outlet in Power Port Data Outlet in Power Port

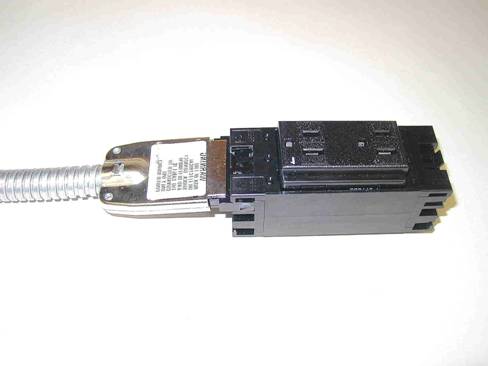

Plug and play connectors shown with power cable

Data Cables
 Plug & Play Connectors  Data Cable



For more detailed information

  POWERFLOR OVERVIEW CATALOG.pdf

POWERFLOR INSTALLATION MANUAL.pdf


ELECTRICAL-ELEMENTS

LOCAL DISTRIBUTION SYSTEM


LDS Power Distribution. Available if required for your application.

LDS system provides power zone distribution.

  • Integrates with cable management system.
  • Provides mini-wiring closet.
  • Use as consolidation or distribution point.
  • Install in place of any full panel.
  • Allows for full cable access under flooring components.
  • LDS provides standard 19" wire rack mounting.
  • Use for mounting patch panels, hubs, routers, musers, muxs, etc.
  • Can be changed or relocated easily.





For more detailed information

  POWERFLOR OVERVIEW CATALOG.pdf

POWERFLOR INSTALLATION MANUAL.pdf




LOCAL DISTRIBUTION SYSTEM

POWERFLOR SKEMATIC

POWERFLOR SKEMATIC

(Click on image for larger view)
PowerFlor Schematic - Typical installation





For more detailed information

  POWERFLOR OVERVIEW CATALOG.pdf

POWERFLOR INSTALLATION MANUAL.pdf


POWERFLOR-SKEMATIC
