PNEUMATIC CUT-CRIMP-PINCH TOOLS - PNEUMATIC POWER PACKS - PNEUMATIC POWER PACKS. Use to cut wire, crimp connectors, pinch tubing, and more.

PNEUMATIC POWER PACKS. Use to cut wire, crimp connectors, pinch tubing, and more.

PNEUMATIC POWER PACKS

AND CUTTING JAWS



02-Series Pneumatic Power Pack, hand lever controlled.   02-F Series Power Pack, remote or footswitch controlled  003 and 004 Series Pneumatic Power Packs, Hand Lever Controlled
 006 Series Pneumatic Power Packs, Hand Lever Controlled.  005 and 008 Series Pneumatic Power Packs, Hand Lever Controlled. 2-Stage Cylinders for more power  SM-100 Power Pack for robotic applications. Remote or footswitch activated

Pneumatic Power Pack / Jaw Combinations for a variety of cutting applications

Refer to the CUTTING JAWS section to get replacement jaw sets.

All power packs are designed to operate on standard shop air (50-100 psi)

AWAYS use an FRL (filter-lubricator-regulator) with these tools.

Clean, lubricated air is important for long tool life.

Most power packs are available in hand lever or footswitch operated models.

ELECTRONICS CATALOG-2009.pdf

(file size: 1993 kb)

INDUSTRIAL CATALOG-2009.pdf

(file size: 2680 kb)

PLASTICS CATALOG-2009.pdf

(file size: 519 kb)





Follow this link for Power Pack Skematics & Parts list:

ACCESSORIES


PNEUMATIC POWER PACKS (Primary)


PIVOTLOK TOOL HOLDING SYSTEM

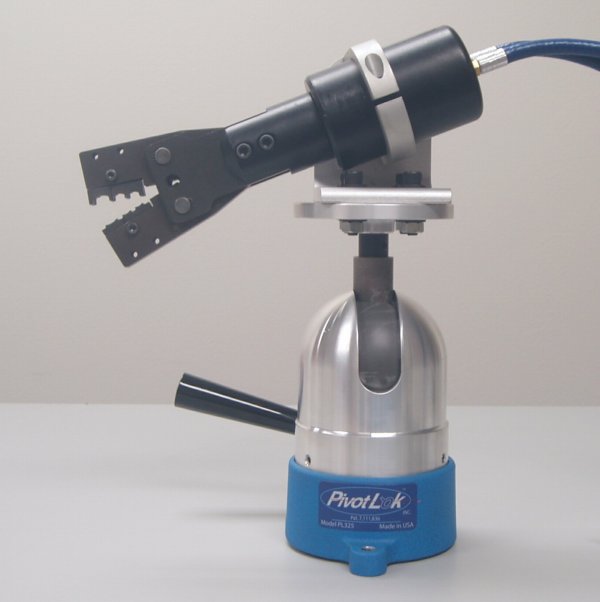

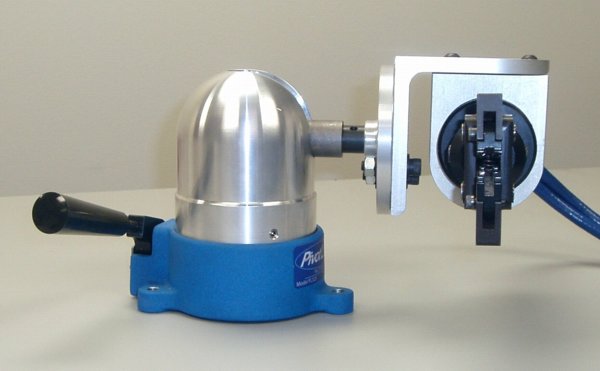

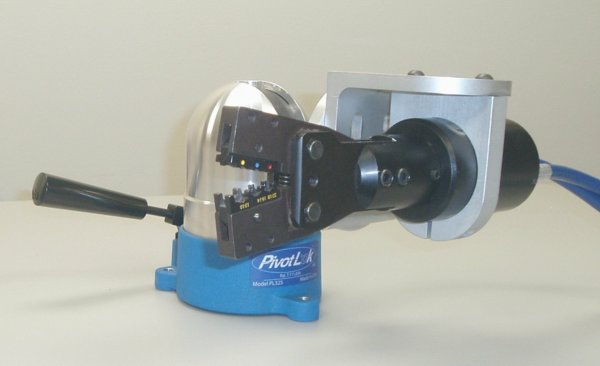

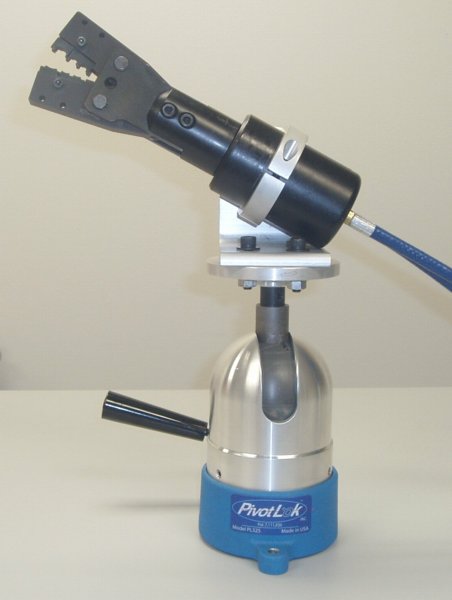

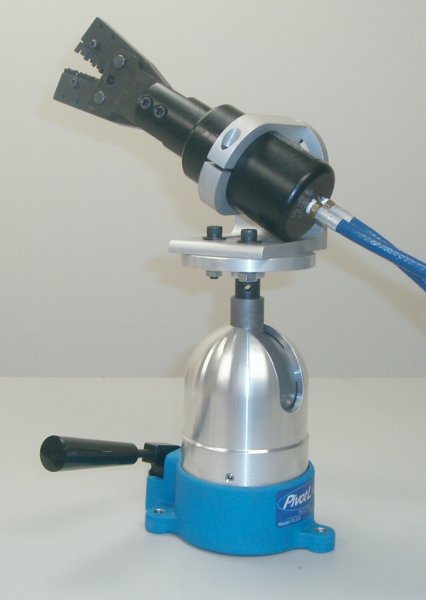

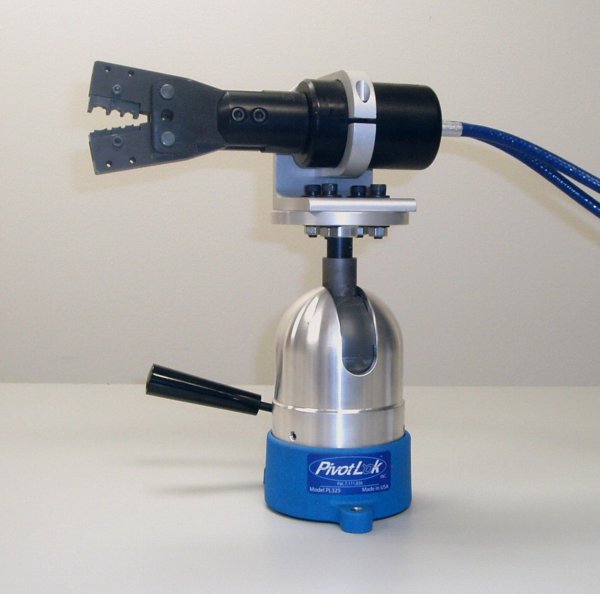

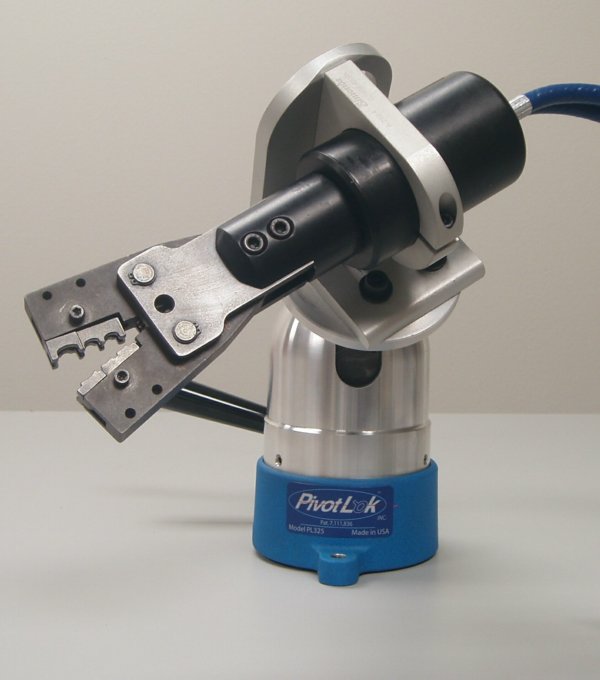

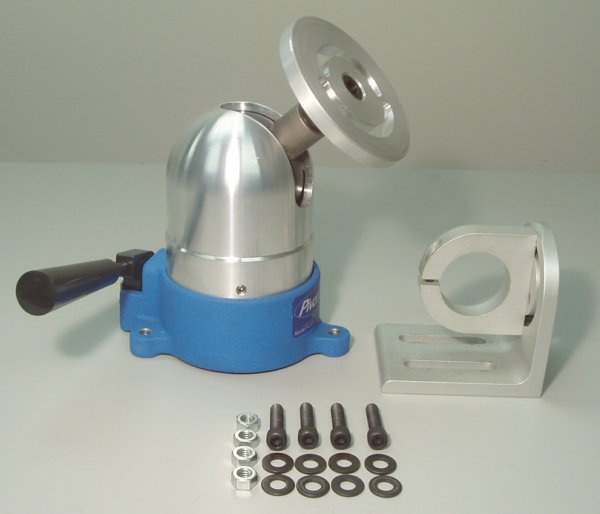

PivotLok Adjustable Tool holder shown with pneumatic tool installed    PivotLok Tool holder shown without tool and tool clamp installed



PIVOTLOK ADJUSTABLE TOOL HOLDING SYSTEM

  • Combines PivotLok Tool Holder with A-202 Tool Clamp
  • Ideal for robotic or automated assembly applications
  • Tilt - Pivot - Rotate to meet any tool position required
  • CALL CPS FOR PRICING AND AVAILABILITY

Click on images for larger view

PivotLok Adjustable Tool holder shown with pneumatic tool installed PivotLok Adjustable Tool holder shown with pneumatic tool installed PivotLok Adjustable Tool holder shown with pneumatic tool installed
PivotLok Adjustable Tool holder shown with pneumatic tool installed PivotLok Adjustable Tool holder shown with pneumatic tool installed PivotLok Adjustable Tool holder shown with pneumatic tool installed

Model PL-325-A202

Complete System

A-202 Series

Tool Clamp

SPECIFICATIONS

  • PivotLok Height (without tool installed):  6-1/2"
  • PivotLok Height (to base with tool installed): 9"
  • Height to center of installed tool, full up position: 11"
  • Width: 6-1/2"
  • Depth: 4-3/8" (without lever)
  • Weight (without tool installed): 8 lbs.
  • Color: Blue
  • Capacity: 120 lbs dead load, 2" from center @ 45 deg angle

Download Data Sheet below:

PivotLok-Data-Sheet.pdf


PIVOTLOK

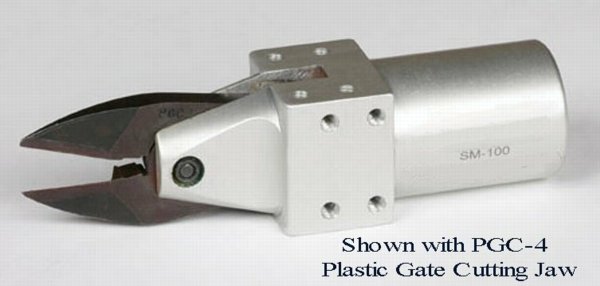

SM-100 ROBOTIC-AUTOMATIC POWER PACK AND JAWS

(Shown with PGC-2 Jaw)

Click on image above for larger image



SM-100 ROBOTIC / AUTOMATIC POWER PACK AND JAWS

  • Designed to work with automated / robotic applications
  • Machined housing easily adaptor for slide rails or tables
  • Customer provides remote selonoid controls, as needed.
  • Uses the same jaws as SP-01 or SP-02 Power Packs
  • Weight: 12 oz.
  • Dimensions: 4.38" L x 1-1/2" Diameter
  • Functions on air pressure ranging from 60-80 p.s.i.
  • Develops cutting force of 800 lbs.
  • Spare Jaws may be ordered separately.



Dimensional Drawings and

Exploded view drawings below:

SM-100 SIDE-VIEW DRAWING.pdf

SM-100 SIDE-VIEW-2 DRAWING.pdf

SM-100 EXPLODED VIEW PARTS.pdf

JAW SELECTION GUIDE.pdf





To select jaws for the SM-100

Click on link below:

JAW SELECTION PAGE

(Opens in new window)




ROBOTIC POWER PACK

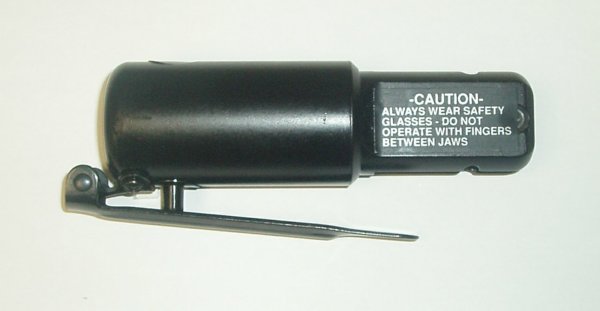

SP-01P SERIES PNEUMATIC POWER PACKS AND JAWS

01 SERIES PNEUMATIC POWER PACKS



SP-01P Power Pack, Hand Lever Controlled

Click on image for larger view

  • The #SP-O1P-SERIES Power packs and Jaws
  • Used for light duty cutting applications.
  • Hand lever or footswitch-controlled models.
  • Tool Dimensions: 5-1/2" L x 1-1/2" Diameter.
  • Closing force @ 80 psi = 575 lbs.
  • Multiple jaw styles available.
  • Spare Jaws may be ordered separately
  • Jaw Housing included with power pack.



Dimensional Drawings and

Exploded view drawings below:

SP-01 EXPLODED VIEW PARTS LIST.pdf

JAW SELECTION GUIDE.pdf



To select jaws for the SP-01P-Power Pack

Click on link below:

JAW SELECTION PAGE

(Opens in new window)






SP-01P SERIES POWER PACKS AND JAWS

SP-02P PNEUMATIC POWER PACKS AND JAWS


SP-02P SERIES POWER PACK
 SP-02P Power Pack, Hand Lever Controlled

Click on lower image for larger view

  • The #SP-02-SERIES Power packs
  • Used for light duty cutting applications.
  • Hand lever or footswitch controlled power packs available.
  • Tool Dimensions: 5-1/2" L x 1-3/4" Diameter.
  • Closing force @ 80 psi = 850 lbs.
  • Multiple jaw styles available
  • Uses the same jaws as the #01 series power packs
  • Spare Jaws may be ordered separatel
  • Jaw housing included with tool.



Exploded view parts drawings below:

SP-02 EXPLODED VIEW PARTS LIST.pdf

JAW SELECTION GUIDE.pdf



To select jaws for the SP-02P Power Pack

Click on link below:

JAW SELECTION PAGE

(Opens in new window)




SP-02P POWER PACKS AND JAWS

SP-002 PNEUMATIC POWER PACKS AND JAWS

SP-002 POWER PACK

Click on image for larger view

  • The #SP-002-SERIES Power packs
  • Used for industrial or electronic applications.
  • Hand lever or footswitch controlled power packs available.
  • Power Pack (only) Dimensions: 4"" L x 1-3/4" Diameter.
  • Closing force @ 80 psi = 1120 lbs.
  • Weight: 1 lb. (+ jaw and housing)
  • Multiple jaw styles available
  • Spare jaws may be ordered separately



Exploded view parts drawings below:

SP-002 EXPLODED VIEW PARTS LIST.pdf

JAW SELECTION GUIDE.pdf



To select jaws for the SP-002-Power Pack

Click on link below:

JAW SELECTION PAGE

(Opens in new window)






SP-002 POWER PACK AND JAWS

SP-003 PNEUMATIC POWER PACKS AND JAWS

SP-003 Power Pack



Click on image for larger view

  • The #SP-003-SERIES Power packs
  • Used for industrial or electronic applications.
  • Hand lever or footswitch controlled power packs available.
  • Power Pack (only) Dimensions: 4"" L x 2.22" Diameter.
  • Closing force @ 80 psi = 2000 lbs. (finished)
  • Weight: 1 lb. 7 oz.  (+ jaw and housing)
  • Multiple jaw styles available
  • Spare jaws may be ordered separately.





Dimensional Drawings and

Exploded view drawings below:

SP-003 EXPLODED VIEW PARTS LIST.pdf

JAW SELECTION GUIDE.pdf



To select jaws for the SP-003-Power Pack

Click on link below:

JAW SELECTION PAGE

(Opens in new window)




SP-003 POWER PACKS AND JAWS

SP-004 PNEUMATIC POWER PACKS AND JAWS

SP-004 POWER PACK

 Click on image for larger view

  • The #SP-004-SERIES Power packs
  • Used for industrial or electronic applications.
  • Hand lever or footswitch controlled power packs available.
  • Power Pack (only) Dimensions: 4"" L x 2.46" Diameter.
  • Closing force @ 80 psi = 2400 lbs. (finished)
  • Weight: 1 lb. 8 oz.  (+ jaw and housing)
  • Multiple jaw styles available
  • Spare jaws may be ordered separately.





Dimensional Drawings and

Exploded view drawings below:

SP-004 EXPLODED VIEW PARTS LIST.pdf

JAW SELECTION GUIDE.pdf



To select jaws for the 004-SERIES

Click on link below:

JAW SELECTION PAGE

(Opens in new window)




SP-004 POWER PACKS AND JAWS

SP-005 PNEUMATIC POWER PACKS AND JAWS


SP-005 POWER PACK

Click on image for larger view



  • The #SP-005-SERIES Power packs
  • Used for industrial or electronic applications.
  • The #005 Series are 2-stage cylinders for heavy duty applications.
  • Hand lever or footswitch controlled power packs available.
  • Power Pack (only) Dimensions: 5-5/8"" L x 2.50" Diameter.
  • Closing force @ 80 psi = 3500 lbs. (finished)
  • Weight: 2 lb. 2 oz.  (+ jaw and housing)
  • Multiple jaw styles available
  • Spare jaws may be ordered separately.





Dimensional Drawings and

Exploded view drawings below:

SP-005 EXPLODED VIEW PARTS LIST.pdf

JAW SELECTION GUIDE.pdf



To select jaws for the SP-005-Power Pack

Click on link below:

JAW SELECTION PAGE

(Opens in new window)




SP-005 POWER PACKS AND JAWS

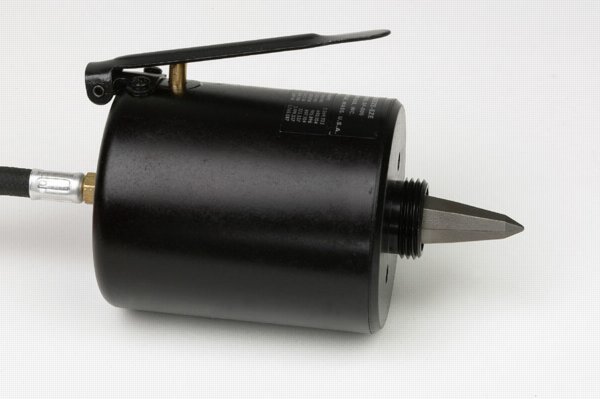

SP-006 PNEUMATIC POWER PACKS AND JAWS

SP-006 POWER PACK



 Click on image for larger view

  • The #SP-006-SERIES Power packs
  • Used for industrial or electronic applications.
  • Hand lever or footswitch controlled power packs available.
  • Power Pack (only) Dimensions: 4"" L x 3.19" Diameter.
  • Closing force @ 80 psi = 3200 lbs. (finished)
  • Weight: 2 lb. 6 oz.  (+ jaw and housing)
  • Multiple jaw styles available
  • Spare jaws may be ordered separately.



Dimensional Drawings and

Exploded view drawings below:

SP-006 EXPLODED VIEW PARTS LIST.pdf

JAW SELECTION GUIDE.pdf



To select jaws for the SP-006-Power Pack

Click on link below:

JAW SELECTION PAGE

(Opens in new window)




SP-006 POWER PACKS AND JAWS

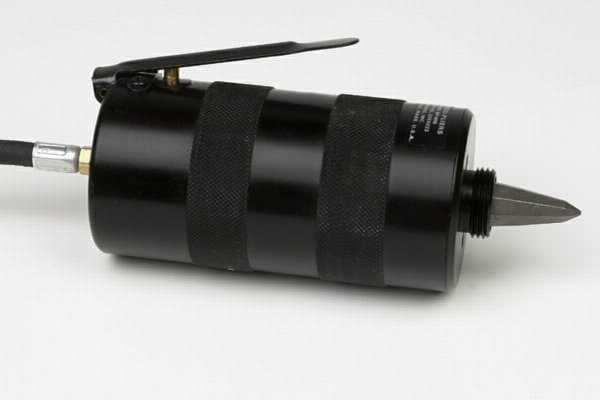

008 SERIES PNEUMATIC POWER PACKS


SP-008 POWER PACK



Click on image for larger view

  • The #SP-008-SERIES Power packs
  • Used for industrial or electronic applications.
  • The #008 Series are 2-stage cylinders for heavy duty applications.
  • Hand lever or footswitch controlled power packs available.
  • Power Pack (only) Dimensions: 5-5/8"" L x 2.875" Diameter.
  • Closing force @ 80 psi = 5000 lbs. (finished)
  • Weight: 2 lb. 2 oz.  (+ jaw and housing)
  • Multiple jaw styles available.
  • Spare jaws may be ordered separately.





Dimensional Drawings and

Exploded view drawings below:

SP-008 EXPLODED VIEW PARTS LIST.pdf

JAW SELECTION GUIDE.pdf



To select jaws for the 008-SERIES

Click on link below:

JAW SELECTION PAGE

(Opens in new window)


008 SERIES POWER PACKS
