CUT OR BEND CIRCUIT BOARD COMPONENT LEADS

PNEUMATIC CUT-BEND TOOL

Cut and bend component leads on PC Boards

Tool Dimensions: 5-1/2" L x 1-1/4" Dia.
Tool weight: 8 oz.
Maximum air pressure: 80 p.s.i.
Cut-Bend heads are easily replaceable.
Multiple cut-bend heads available (20, 30 or 45 deg.)

Follow this link for Power Pack Skematics & Parts list:

ACCESSORIES

PNEUMATIC CUT-BEND TOOLS (Primary)

PNEUMATIC CUT-BEND TOOL

Examples of the cut-bend heads below

Click on image for larger view

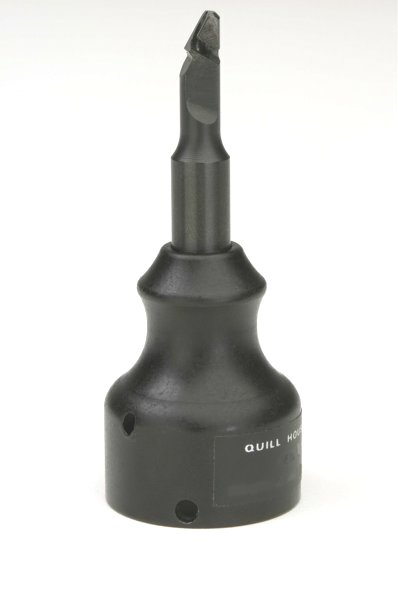

#4H4-30

30 deg. head

#4H-30

30 deg. head

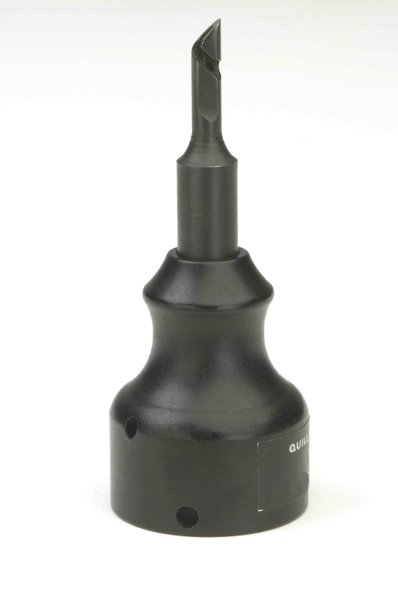

#4H-45

45 deg. head

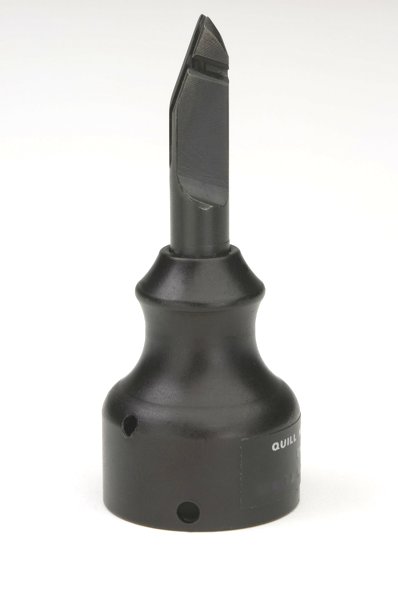

#4HG-20

20 deg. head

STANDARD CUT AND BEND HEADS

Part #	Wire Size	Work Angle
4H-20	0.010-0.028	20^o
4H-30	0.010-0.028	30^o
4H-45	0.010-0.028	45^o
4HA-20	0.020-0.038	20^o
4HA-30	0.020-0.038	30^o
4HA-45	0.020-0.038	45^o
4HG-20	0.030-0.050	20^o

SHORT LAYOVER CUT AND BEND HEADS

(1/32" max layover)

Part #	Wire Size	Working Angle
4H4-20-SL	0.010-0.038	20^o
4H4-30-SL	0.010-0.038	30^o
4H4-45-SL	0.010-0.038	45^o
4HG-20-AR	0.030-0.050	20^o
