BC-004 Ball Crimp Tool
|
|
Power Pack used with
BC-004 Pinch-Off Tool
|
Power Pack used with
BC-006 Pinch-Off Tool
|
-

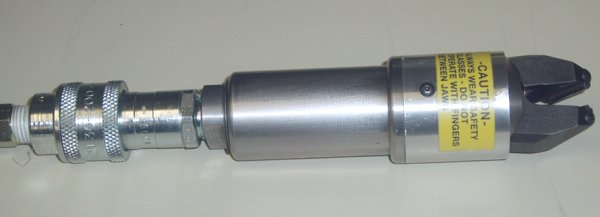

Pneumatic Ball Crimp Tool
-
This pinch jaw features ball & socket design.
-
Features "reverse valve" (jaws closed when tool is "at rest")
-
Tool locks (crimps) tubing so both hands are free to solder tube.
-
Tool opens when hand lever is activated (as shown above).
-
When jaws are closed, air or liquid flow is stopped so soldering can be performed.
-
Tubing is pinched ONLY, Not Pinched-Off.
-
Secondary sealing (solder, epoxy) required for hermetic seal.
-
This tool will NOT seal the tube without the secondary sealing operation.
-
For use on "dead soft" tubing (aluminum, copper, etc.)
-
Model #BC-004 for tubing up to .250 (1/4") diameter.
-
Model #BC-004-F (Footswitch controlled. Includes Footswitch)
-
Model #BC-006 is used on tubing up to .375 (3/8") diameter.
-
Model #BC-006-F (footswitch controlled, Includes Footswitch)
-
For pinching .500" dia. tubing, contact CPS.
-
Commonly used in refrigeration & air conditioning industries.
-
We suggest you send us samples of your tubing for testing prior to purchase
|
 |
| Tube pinched with BC-004 |
