 Replacement or Spare Cutting Jaws for use with Pneumatic Power Packs



This product section will detail the various cutting jaws available

for use with the power packs.



It's important to match your application with the correct combination

of power pack and jaw assembly.



In many cases, we will request samples of your parts for evaluation

prior to making a tool recommendation.



Custom jaws are available for applications where standard jaws won't

perform the function needed.



Contact CPS for recommendation assistance or download the catalog(s)

for you specific industry.



TO ORDER COMPLETE TOOLS, INCLUDING POWER PACKS AND JAWS,

REFER TO THE POWER PACK SECTION.



Download the catalog

that best represents

your industry:

ELECTRONICS CATALOG-2009.pdf

(file size: 1993 kb)

INDUSTRIAL CATALOG-2009.pdf

(file size: 2680 kb)

PLASTICS CATALOG-2009.pdf

(file size: 519 kb)

JAW SELECTION GUIDE.pdf

(2348 kb)





Follow this link for Power Pack Skematics & Parts list:

ACCESSORIES


JAWS-CUTTING (Primary)


PNEUMATIC CUTTING JAWS for light cutting operations

LIGHT DUTY CUTTING JAWS

  • Use with SM-100, SP-01 or  SP-02 Power Packs
  • Easily cut light metals plastics and other materials
  • Multiple jaw configurations available
  • carbide jaws can be provided (Optional)
  • Standard or custom designed jaws

TO ORDER COMPLETE TOOLS, INLCUDING

POWER PACKS & JAWS, REFER TO THE

POWER PACK SECTION



JAWS FOR CUTTING SOFT WIRE

CD-1 CUTTING JAW
CD-3 CUTTING JAW

  JAW #CD-1 (or CD-1-CH)

(CH = Case Hardened)

Cuts soft wire (0.06" max)

45 deg. angle

Semi-Flush Cut

Length of cut: .43"

Full flush cut available

  JAW #CD-3

Cuts  soft wire (0.06 max)

15 deg. angle

Semi-Flush Cut

Length of cut: .83"

Full flush cut available



CD-4 CUTTING JAW
FS-1 FILIMENT SHEAR JAW

  JAW #CD-4-CH

(CH=Case Hardened)

Cuts soft  wire (0.08" max)

0 deg. angle

Semi-Flush, Center  Cut

Length of cut: 0.50"

Max tip opening: 0.19"

  JAW #FS-1

Cut fine wire (0.13" max)

0 deg. angle

Shear-style cutting action

Length of cut: .75"

Max tip opening: .21"





JAWS FOR CUTTING PLASTICS ONLY

PGC-2 CUTTING JAW FOR PLASTICS
PCG-2-45 CUTTING JAW FOR PLASTICS

  JAW #PGC-2

18 deg. angle

Length of cut: 7/8"

Flush cutting

Max. opening: 31/64"

  JAW #PGC-2-45

45 deg. angle

Length of cut: 5/64"

Flush cutting

Max. opening: 29/64"

PGC-4-60 CUTTING JAW FOR PLASTICS
PGC-4-90 CUTTING JAW FOR PLASTICS

  JAW #PGC-2-60

60 deg. angle

Length of cut: 3/4"

Flush cutting

Max. opening: 13/32"

  JAW #PGC-2-90

90 deg. angle

Length of cut: 1"

Flush cutting

Max opening: 23/64"



To select the proper jaw

Download the data sheet below:

JAW SELECTION GUIDE.pdf (2348 kb)






CUTTING JAWS FOR 01 AND 02 SERIES POWER PACKS

PNEUMATIC CUTTING JAW SETS for Heavy Duty Applications

CUTTING JAWS FOR HEAVIER CUTTING APPLICATIONS

  • Use with SP-002 thru SP-008 Power Packs
  • Easily cut metals, plastics and other materials
  • Multiple jaw configurations available
  • Steel or carbide jaws can be provided
  • Standard or custom designed jaws

TO ORDER COMPLETE TOOLS, INLCUDING

POWER PACKS & JAWS, REFER TO THE

POWER PACK SECTION



JAWS FOR CUTTING MILD WIRE

UP TO 0.25" DIAMETER

Click on images for larger view

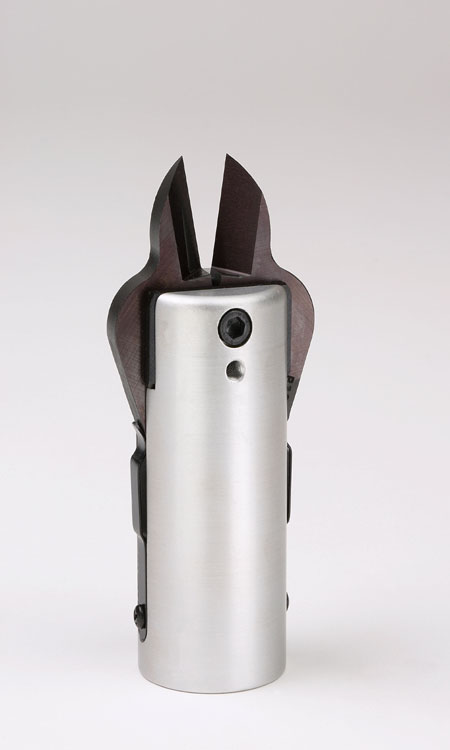

B-32 Cutting Jaw and Jaw Housing

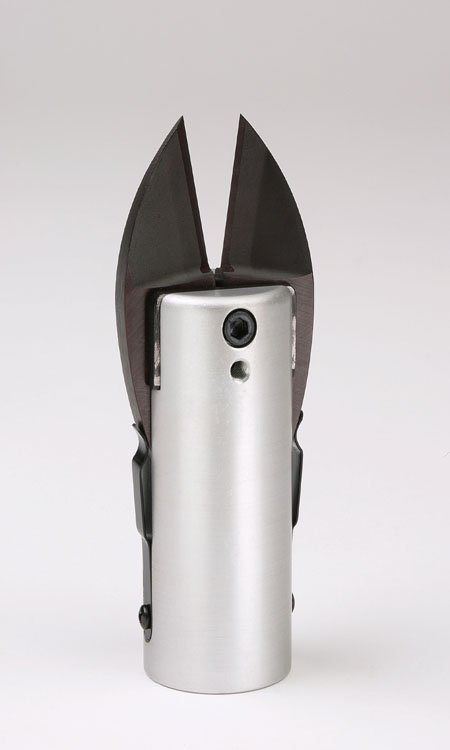

B-33 Cutting Jaw and Jaw Housing

#B-32

#B32-CH

JAW & HOUSING

(CH=Case Hardened)

Side-Cutting Jaw

Length of cut: 1.04"

Max. opening: 0.49"

 Housing length: 4.18"

Overall length: 5.29"

Weight: 1 lb., 6 oz.

Diameter: 1.72"

(Jaw set only: #RB-32

or RB-32-CH)

#B-33

#B-33-CH

JAW & HOUSING

(CH= Case Hardened)

Center-Cutting Jaw

Length of cut: 1.60"

Max. opening: 0.68"

 Housing length: 4.18"

Overall length: 5.90"

Weight: 1 lb., 8 oz.

Diameter: 1.72"

(Jaw set only: #RB-33

or RB-33-CH)

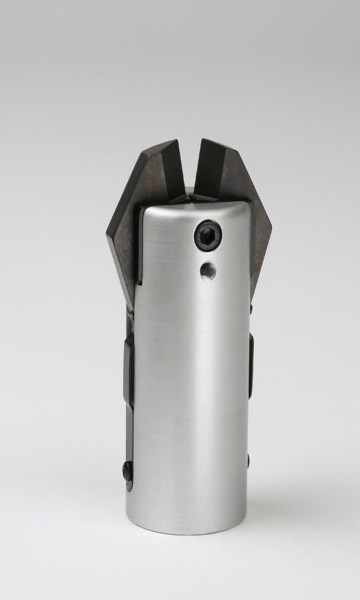

B-35 Cutting Jaw and Jaw Housing

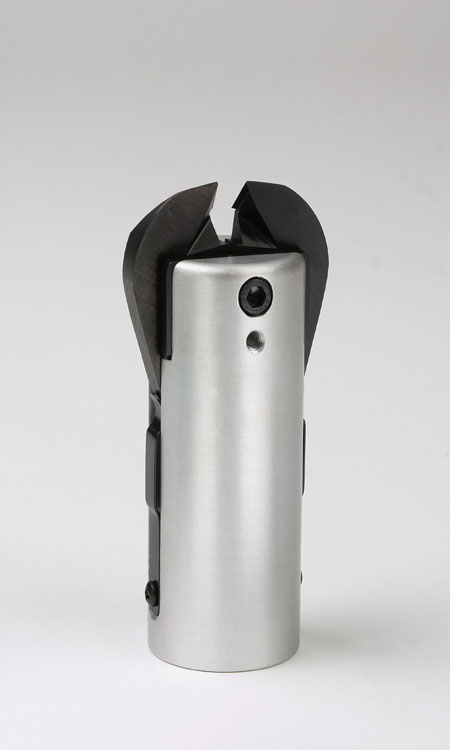

D-31 Cutting Jaw and Jaw Housing

#B-35

JAW & HOUSING

Center-Cutting Jaw

Length of cut: 0.75"

Max. opening: 0.31"

 Housing length: 4.18"

Overall length: 4.92"

Weight: 1 lb., 6 oz.

Diameter: 1.72"

(Jaw set only: #RB-35)





#D-31

#D-31-CH

JAW & HOUSING

(CH=Case Hardened)

45 Deg. Angle

Length of cut: 0.43"

Max. opening: 0.31"

 Housing length: 4.18"

Overall length: 4.68"

Weight: 1 lb., 5 oz.

Diameter: 1.72"

(Jaw set only: #RD-31

or RD-31-CH)

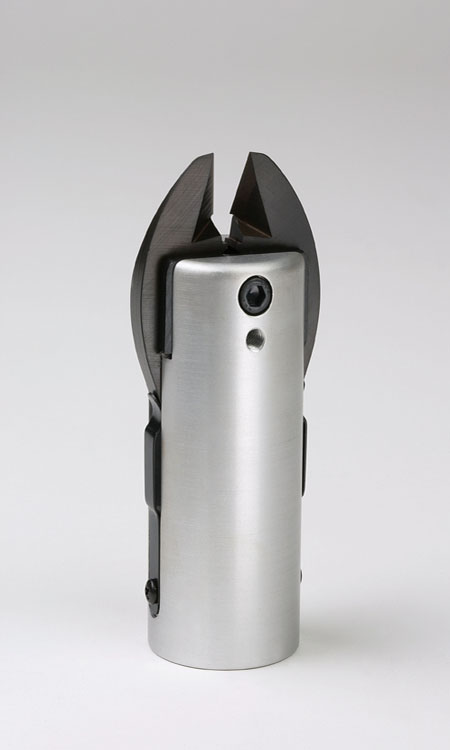

D-4 Cutting Jaw and Jaw Housing
D-33 Cutting Jaw and Jaw Housing

#D-4

JAW & HOUSING

25 Deg. Angle

Length of cut: 0.74"

Max. opening: 0.43"

 Housing length: 4.18"

Overall length: 4.68"

Weight: 1 lb., 5 oz.

Diameter: 1.72"

 (Jaw set only: #RD-4)

#D-33

JAW & HOUSING

45 Deg. Angle

Length of cut: 0.86"

Max. opening: 0.62"

 Housing length: 4.18"

Overall length: 4.68"

Weight: 1 lb., 5 oz.

Diameter: 1.72"

 (Jaw set only: #RD-33)



To select the proper jaw

Download the  data sheet below:

JAW SELECTION GUIDE.pdf (2348 kb)



For pricing on Jaw and jaw Housing combinations,

Contact CPS


CUTTING JAWS FOR 002 THRU 008 POWER PACKS

HEAVY DUTY CUTTING JAW SETS FOR RUBBER HOSE

JAWS FOR CUTTING RUBBER HOSE,

PLASTIC TUBING, RIBBON CABLE OR

SOFT, SHEILDED COPPER CABLE

(Brass anvil on 1 side, cutting

jaw on the other side)

Use with SP-002 thru SP-008 POWER PACKS



TO ORDER COMPLETE TOOLS, INLCUDING

POWER PACKS & JAWS, REFER TO THE

POWER PACK SECTION



Click on images for larger view

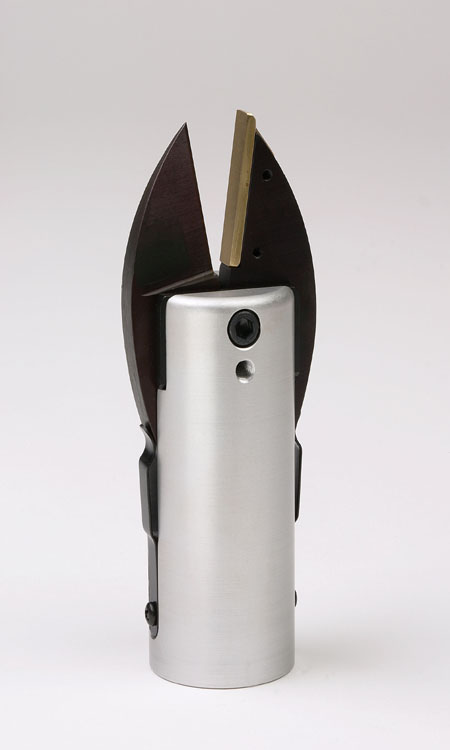

E-3 Cutting Jaw and Jaw Housing

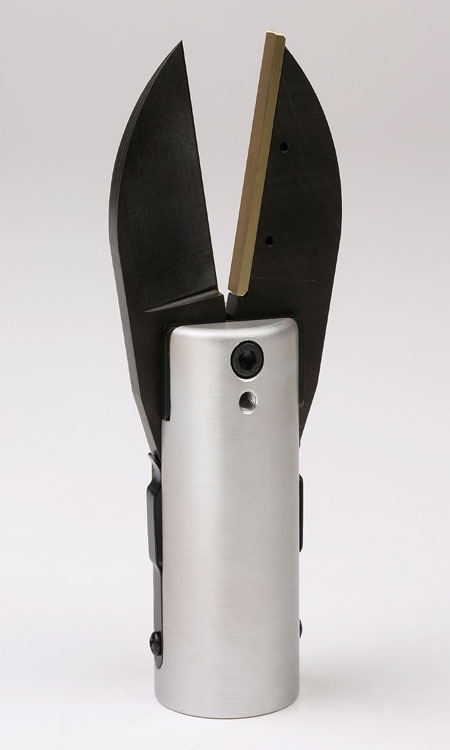

E-4 Cutting Jaw and Jaw Housing

#E-3

JAW & HOUSING

0 Deg. Angle

Length of cut: 1.48"

Max. opening: 0.44"

 Housing length: 4.18"

Overall length: 5.90"

Weight: 1 lb., 6 oz.

Diameter: 1.72"

(Jaw set only: #RE-3)

#E-4

JAW & HOUSING

0 Deg. Angle

Length of cut: 2.72"

Max. opening: 1.0"

 Housing length: 4.18"

Overall length: 6.89"

Weight: 1 lb., 8 oz.

Diameter: 1.72"

(Jaw set only: #RE-4)





To select the proper jaw

Download the  data sheet below:

JAW SELECTION GUIDE.pdf







For pricing on Jaw and jaw Housing combinations,

Contact CPS




CUTTING JAWS FOR RUBBER HOSE

CUTTING JAW SETS FOR PLASTICS

PLASTIC GATE CUTTING JAWS

  • Use with SP-002 thru SP-008 Power Packs
  • For use on plastics only
  • Typically used to cut plastic gates
  • Standard or custom designed jaws



TO ORDER COMPLETE TOOLS, INLCUDING

POWER PACKS & JAWS, REFER TO THE

POWER PACK SECTION



Click on images for larger view

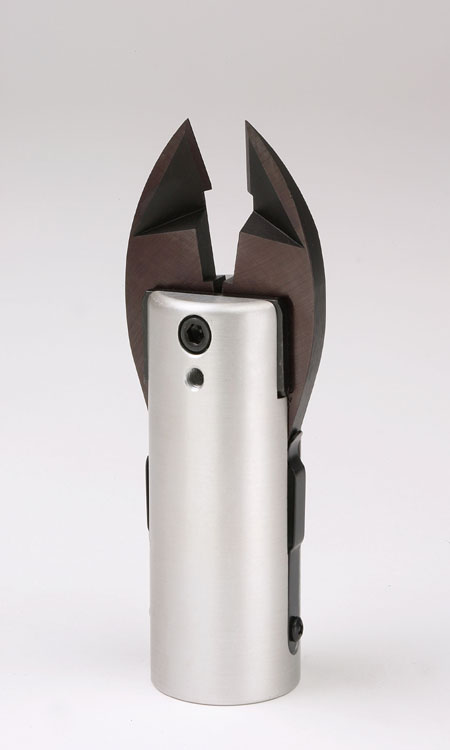

PGC-4 Plastic Gate Cutting Jaw and Jaw Housing

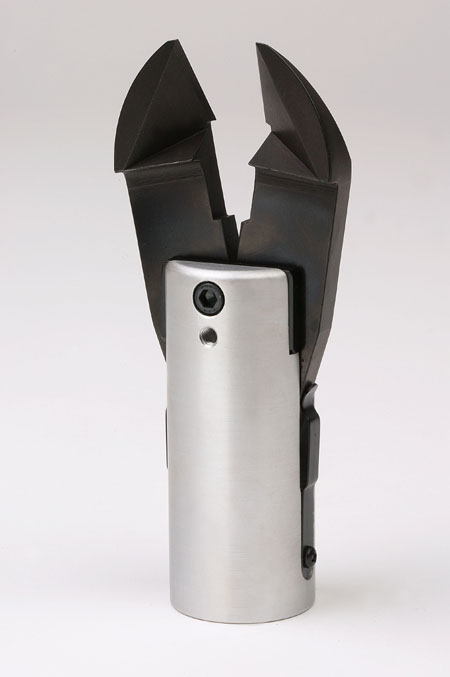

PGC-4-30 Plastic Gate Cutting Jaw and Jaw Housing

 PGC-4

JAW & HOUSING

25 Deg. Angle

Length of cut: 0.86"

Max. opening: 0.62"

 Housing length: 4.18"

Overall length: 5.41"

Weight: 1 lb., 5 oz.

Diameter: 1.72"

 (Jaw set only: #RPGC-4)

 PGC-4-30

JAW & HOUSING

30 Deg. Angle

Length of cut: 1.16"

Max. opening: 0.82"

 Housing length: 4.18"

Overall length: 6.26"

Weight: 1 lb., 6 oz.

Diameter: 1.72"

 (Jaw set only: #RPGC-4-30)

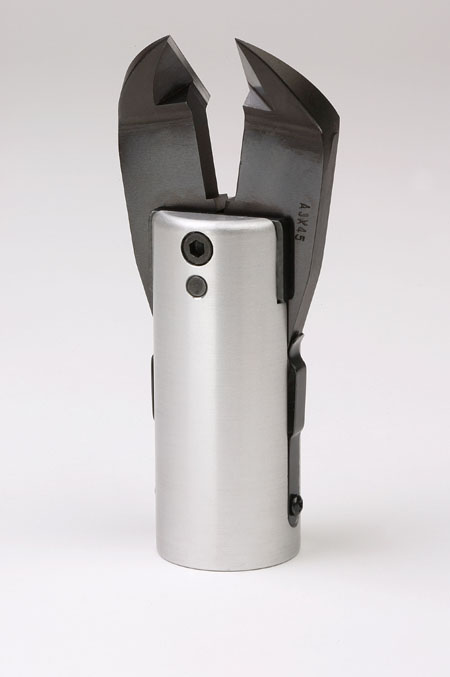

PCG-4-45 Plastic Gate Cutting Jaw and Jaw Housing

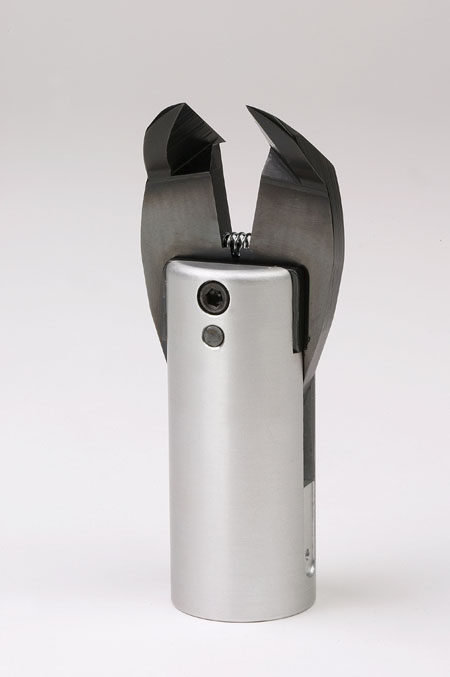

PGC-4-60 Plastic Gate Cutting Jaw and Jaw Housing

 PGC-4-45

JAW & HOUSING

45 Deg. Angle

Length of cut: 1.12"

Max. opening: 0.70"

 Housing length: 4.18"

Overall length: 6.26"

Weight: 1 lb., 6 oz.

Diameter: 1.72"

 (Jaw set only: #RPGC-4-45)

 PGC-4-60

JAW & HOUSING

60 Deg. Angle

Length of cut: 1.15"

Max. opening: 0.65"

 Housing length: 4.18"

Overall length: 6.03"

Weight: 1 lb., 5 oz.

Diameter: 1.72"

 (Jaw set only: #RPGC-4-60)

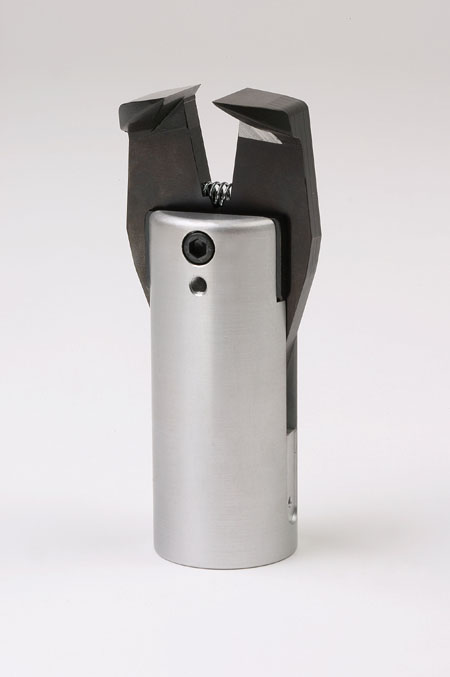

PCG-4-90 Plastic Gate Cutting Jaw and Jaw Housing

PGC-4-90

JAW & HOUSING

90 Deg. Angle

Length of cut: 1.16"

Max. opening: 0.51"

 Housing length: 4.18"

Overall length: 5.56"

Weight: 1 lb., 6 oz.

Diameter: 1.72"

 (Jaw set only: #RPGC-4-90)



To select the proper jaw

Download the  data sheet below:

JAW SELECTION GUIDE.pdf (2348 kb)





For pricing on Jaw and jaw Housing combinations,

Contact CPS




CUTTING JAWS FOR PLASTICS
