Pneumatic tools for cutting, crimping or tube pinching applications







ELECTRONICS CATALOG.pdf

(file size: 1818 kb)

INDUSTRIAL CATALOG.pdf

(file size: 791 kb)

PLASTICS CATALOG.pdf

(file size: 473 kb)

PNEUMATIC TOOLS FOR ALL INDUSTRIES

CUT-CRIMP-PINCH-HOLD

STANDARD or CUSTOM SOLUTIONS





The product section will provide examples of the various pneumatic tool

configurations available.  These tools may be hand-held or bench mounted.

Hand lever actuated or footswitch control models are also available.





If your application requires a custom tool, we would be pleased to review

your application in an effort to provide you with a tool that will solve your

problem.  We may request that you send us samples of the parts you wish

to cut, crimp or pinch so we may evaluate the application and provide you

with a tool recommendation.





Contact CPS (888-444-1202) for recommendation assistance or download the

catalog(s)for you specific industry.  Each catalog will provide much more

detail thancan presented on these pages.  Catalog links are included

in each productsection below.








PNEUMATIC POWER PACKS

AND JAWS FOR CUTTING APPLICATIONS



02-Series Pneumatic Power Pack hand lever controlled.    02-F Series Power Pack remote or footswitch controlled
  003 and 004 Series Pneumatic Power Packs Hand Lever Controlled 006 Series Pneumatic Power Packs Hand Lever Controlled.
  005 and 008 Series Pneumatic Power Packs Hand Lever Controlled.  2-Stage Cylinders for more power   SM-100 Power Pack for robotic applications. Remote or footswitch activated


  • Refer to the CUTTING JAWS sections to get jaw specifications.
  • All pneumatic power packs are designed to operate on standard shop air (50-100 psi)



PRICING or PURCHASE ONLINE

Follow  " More Info" link below





REPLACEMENT OR SPARE CUTTING JAWS

FOR PNEUMATIC POWER PACKS

B-35 Center Cutting Jaw and Jaw Housing
B-32 Side Cutting Jaw and Jaw Housing
B-31 Center Cutting Jaw and Jaw Housing

PGC4-30 Plastic Gate Cutting Jaw and Jaw Housing. 30 Deg. Angle Cut

PCG4-90 Plastic Gate Cutting Jaw and Jaw Housing. 90 Deg Cut Angle

E-4 Cable Cutting Jaw and Jaw Housing. 1 cutting Jaw 1 jaw with brass anvil.
  CD-1 Cutting Jaw Semi-Flush Cut 45 deg. angle.    CD-4 Center Cutting Jaw   FS-1 Filament shear cutting jaw for fine wire

  • Easily cut metals plastics and other materials
  • Multiple jaw configurations available
  • Steel or carbide jaws can be provided
  • Standard or custom designed jaws

PRICING or PURCHASE ONLINE

Follow  " More Info" link below


PNEUMATIC CRIMPING DIES AND JAWS used to crimp connectors, tubing, etc.



CRIMPING DIES FOR

ELECTRICAL AND ELECTRONIC CONNECTORS



  • Use in conjunction with pneumatic power packs
  • Standard and custom crimp dies available
  • Crimp ring spade or butt terminals
  • Crimp coax connectors



PRICING or PURCHASE ONLINE

Follow  " More Info" link below


PNEUMATIC TUBING PINCH TOOLS.  For pinching copper or aluminum tubing,



PNEUMATIC PINCH TOOL FOR SOFT TUBING



  • Pinch and seal copper or aluminum tubing, up to 1/2" diameter
  • Hermetic seal insured with secondary sealing operation (solder, braze)
  • Hand lever or footswitch controlled models available.
  • 2 jaw designs available.

PRICING or PURCHASE ONLINE

Follow "More Info" link below



PNEUMATIC CUT-BEND TOOL

Cut and bend component leads on PC Boards

  • Tool Dimensions: 5-1/2" L x 1-1/4" Dia.
  • Tool weight: 8 oz.
  • Maximum air pressure: 80 p.s.i.
  • Cut-Bend heads are easily replaceable.
  • Multiple cut-bend heads available (20 30 or 45 deg.)







#BP-1 POWER PACK

(Shown with #4H-45 Cut-Bend Head)



#BP-1 POWER PACK

(Shown with #4HG-20 Cut-Bend Head)









CUSTOM PNEUMATIC TOOLS AND JAWS



  • Designing custom tools is a common request from our customers.



  • If you have a special application that requires a custom tool, please give us a call.



Click on image for larger view

Mouse-over image for tool description

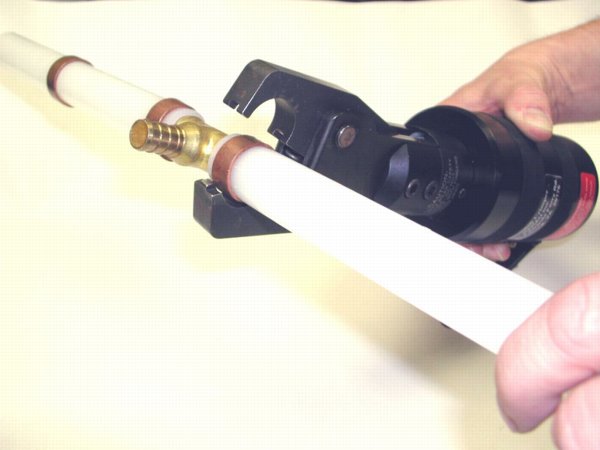

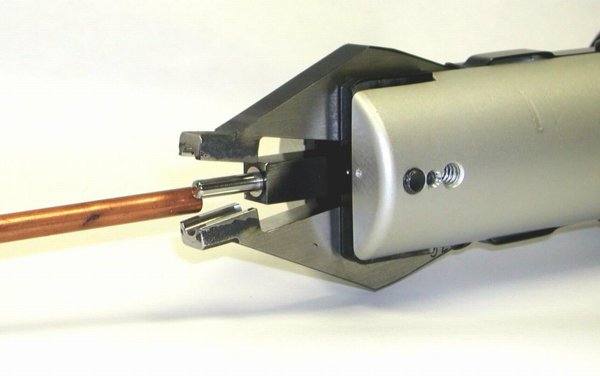

Pneumatic tool for flattening or forming soft copper tubing  Pneumatic tool for crimping copper ring seals used on PEX Tubing

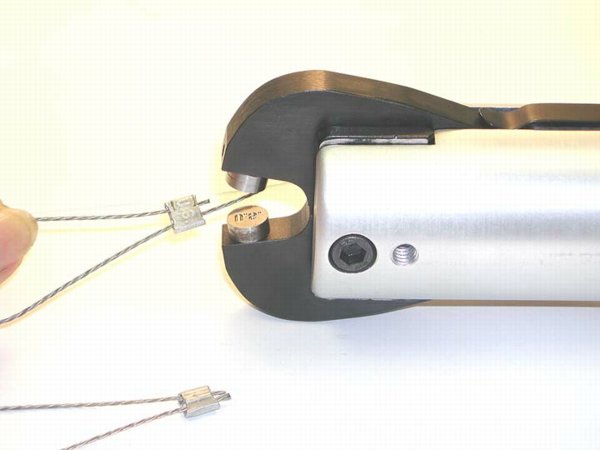

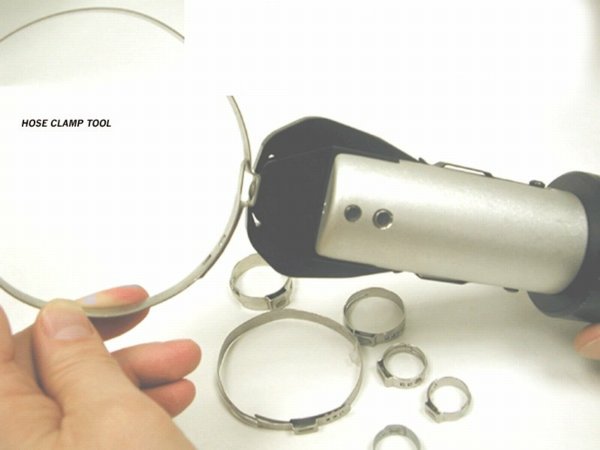

 Pneumatic tool for use with Oetiker Clamps Pneumatic tool for compressing soft meter seals






HANDWORKER PNEUMATIC TOOL. Converts your hand cutters or crimp tools into a pneumatic powered tool.

The HANDWORKER system turns YOUR

hand tool into a pneumatic tool.





  • Relieve hand strain
  • Reduce repetitive motion disorders
  • Increase production
  • Holds a wide variety of tools from 4" - 10" Long.
  • Easy, quick tool change.
  • Affordable way to utilize your existing tools.







PRICING or PURCHASE ONLINE

Follow "More Info" link below


ACCESSORIES & SKEMATICS FOR PNEUMATIC TOOLS AND COMPONENTS

ACCESSORIES and PARTS LISTS

for the Pneumatic Tools



Skematics and Parts Lists for Pneumatic Tools

PivotLok Adjustable Tool Holding System



PRICING or PURCHASE ONLINE

Follow  " More Info" link below
