LCD Monitor Arms - HORIZONTAL SURFACE MOUNT - WORK SURFACE MOUNT APPLICATIONS

WORK SURFACE MOUNT APPLICATIONS

LCD Monitor Arms

HORIZONTAL or WORKSURFACE MOUNT

(Click on image below to take you to product section)

For preconfigured mounting solutions

Download the Easy Order Guide below:



EASY ORDER GUIDE-410-NP.pdf

 GENERAL ORDER GUIDE-410.pdf

60210 Adjustable Arm, Worksurface mounted  60217 Short, telescoping pole, worksurface mounted  60223 Adjustable arm with laptop platform, worksurface mounted  60226 Dual Adjustable Arm, worksurface mounted  60228 Adjustable, raisable arm, worksurface mounted




HORIZONTAL SURFACE MOUNT (Primary)


60210 SERIES LCD MONITOR ARM, TABLE MOUNT

60210 Adjustable Arm, Worksurface-mounted

60210 Series

Adjustable Arm mounted to horizontal surface.

  • (Photo above shows arm mounted to grommet pin)
  • Supports LCD's weighing 5 - 15  or 16 - 28 lbs.
  • Arm range of motion: 90 degrees (Vertical (up) - Horizontal).
  • Monitor tilts forward / back, pivots left / right
  • Monitor also rotates portrait / landscape
  • Compliant with 75 x 75, 100 x 100 and 100 x 200mm VESA.
  • Pole and Wall mount brackets available.
  • Standard colors: Light Gray or Black



Click on image for larger view

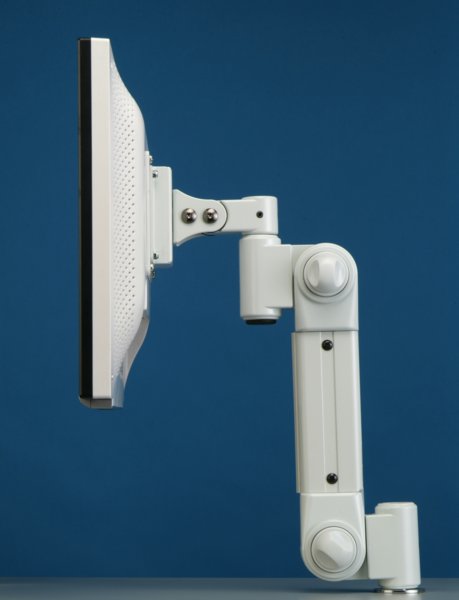

60210 Adjustable arm, worksurface-mounted

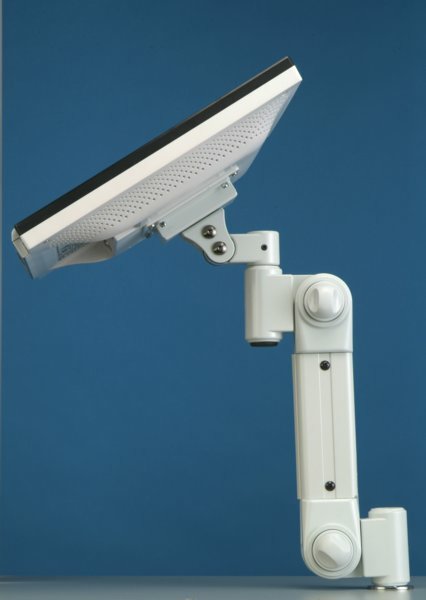

60210 Adjustable arm, worksurface-mounted, LCD in back-tilt position

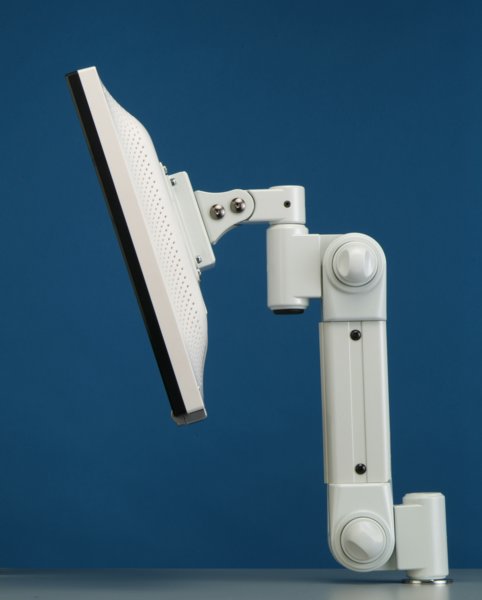

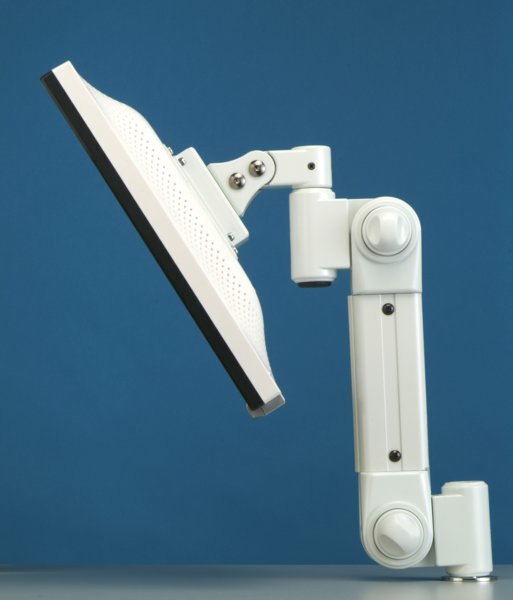

 60210 Adjustable Arm, Worksurface-mounted, LCd in down-tilt postion

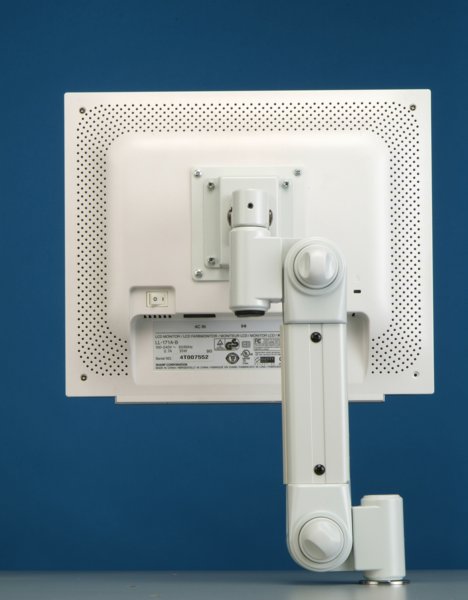

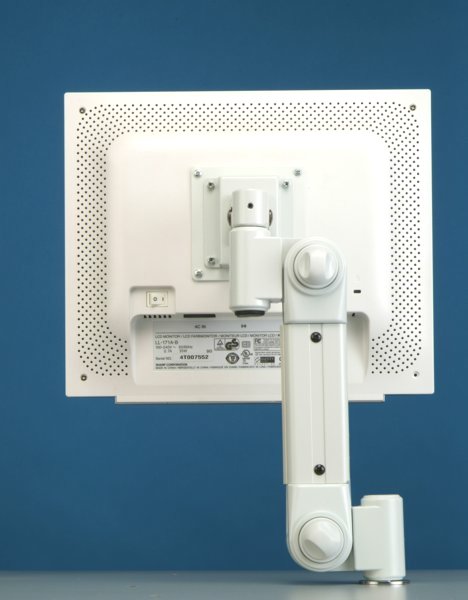

60210 Adjustable Arms, worksurface-mounted, back side view



Examples of Worksurface Mounting Brackets

Click on image for larger view

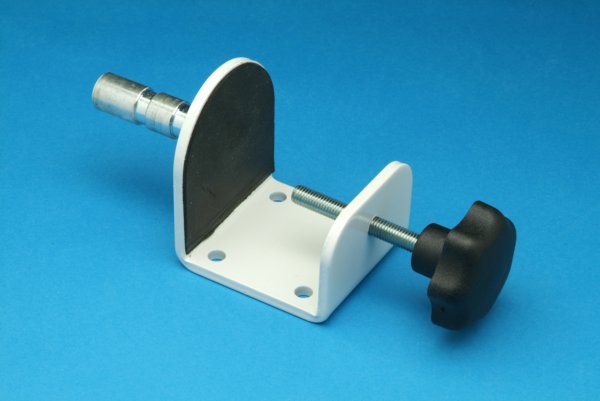

25-01 C-Clamp Bracket

 25-01

C-Clamp

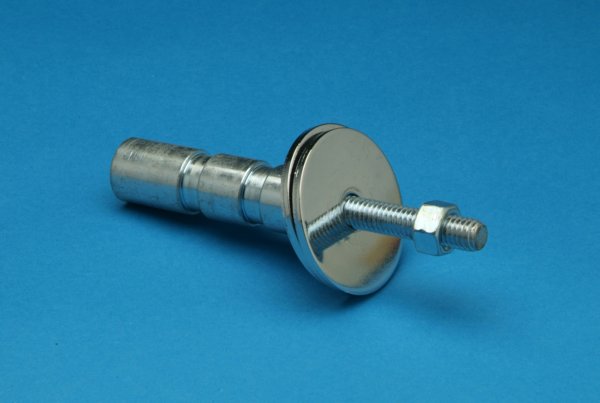

25-22 Grommet Pin

25-22

Grommet Pin


60210 ASSEMBLY INSTRUCTIONS.pdf



For preconfigured mounting solutions

Download the Easy Order Guide below:



EASY ORDER GUIDE-410-NP.pdf

 GENERAL ORDER GUIDE-410.pdf


60210 SERIES-TABLE MOUNT

60217 TELESCOPING POLE

60217 Series, Short Telesoping Pole, worksurface mounted

60217 SERIES

SHORT TELESCOPING POLE

WORKSURFACE-MOUNTED

  • Telescopes from 12 - 16 inches (from worksurface).
  • Forward and Back tilt.
  • Left and right pivot (360 degrees)
  • Rotate screen portrait / landscape.
  • Telescoping pole may be mounted to worksurface with:
    • Free-standing V-Base
    • #25-24 Die Cast Base (bolt or screw to worksurface).
  • Standard colors: Light gray or black
    		•



    Click on images for larger view

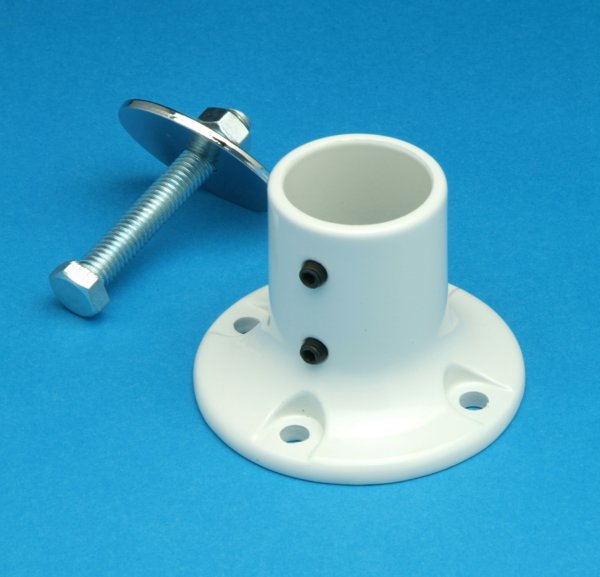

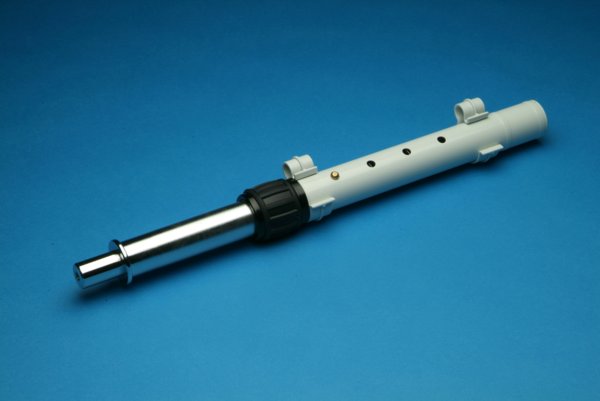

    #23-13 Short Telescoping pole   60217 Short telescoping pole, worksurface mounted  25-24 Worksurface base for 23-13 telescoping pole

     Telscoping Pole

     60217 Assembly

    with Pole Base

     Pole Base

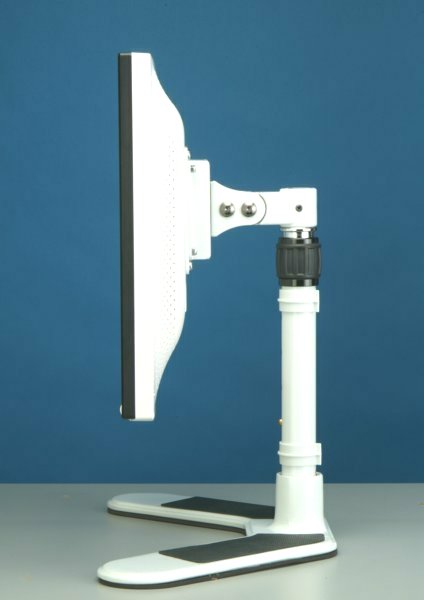

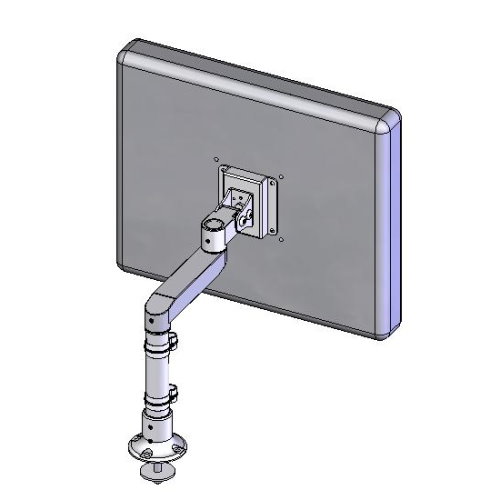

     60217 Telescoping Pole with U-Base

     60217 Assembly

    with U-Base





    60217 ASSEMBLY INSTRUCTIONS.pdf



    For preconfigured mounting solutions

    Download the Easy Order Guide below:



    EASY ORDER GUIDE-410-NP.pdf

    GENERAL ORDER GUIDE-410.pdf










    60217 TELESCOPING POLE

    60223 Adjustable Arm and Laptop Platform



    60223 Adjustable Arm with Laptop Platform, Worksurface-mounted.

    60223 Series

    Adjustable Arm with Laptop Platform

    Worksurface Mount

    • Arm range of motion: 90 degrees (Vertical (up) - Horizontal).
    • Arm pivots left / right: 360 degrees
    • Platform tilts forward / back, pivots left / right
    • Metal Platform measures: 12" D x 15" W.
    • (Optional) #24-06 Spring-Loaded Keyboard Platform
    • Multiple worksurface mounting brackets available
    • Pole and Wall mount brackets available.
    • Standard colors: Light Gray or Black



    Click on image for larger view

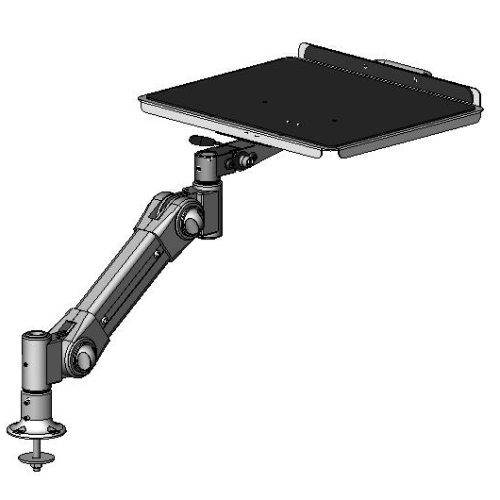

    60223 Adjustable Arm with Laptop Platform, Worksurface-mounted.

     Worksurface Mounting Brackets

    Click on image for larger view

    25-01 C-Clamp Bracket

     25-01

    C-Clamp



    25-22 Grommet Pin

    25-22

    Grommet Pin



    NEW -  #24-06 Spring-Loaded Laptop Clamp

    (optional mouse tray available)
    #24-06 Spring-Loaded Laptop Clamp   Optional #P24-12-10 Mouse Tray



    60223 ASSEMBLY INSTRUCTIONS.pdf

    #24-06 Spring-Loaded Laptop Platform.pdf



    For preconfigured mounting solutions

    Download the Easy Order Guide below:



    EASY ORDER GUIDE-410-NP.pdf

    GENERAL ORDER GUIDE-410.pdf




    60223 Adjustable Arm and Laptop

    60226 Dual Adjustable Arm, Worksurface Mount

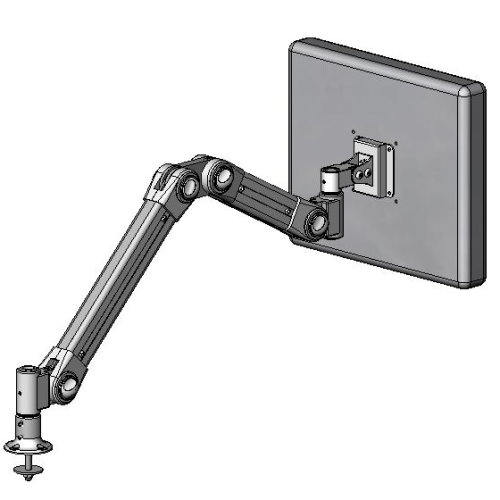

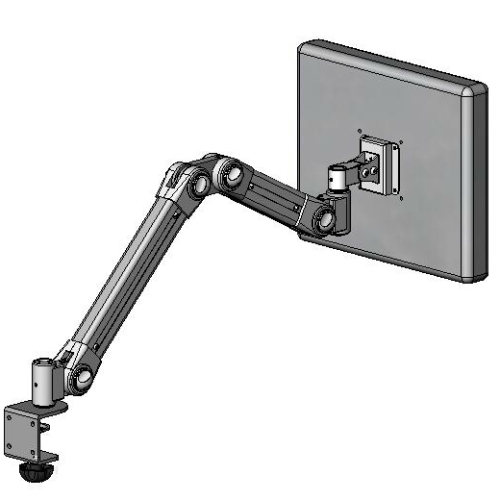

     60226 Dual Adjustable Arm, Worksurface-mounted with die cast grommet  60226 Dual Adjustable Arm, Worksurface-mounted with C-Clamp

    Click on images for larger view

    60226 Series

    Dual Adjustable Arms

    • 180 degree Vertical Range of motion: Vertical (up) to vertical (down).
    • Weight capacity: 2-12 lbs.
    • Arm length: 35"
    • May be wall, pole or worksurface mounted.
    • No left / right pivot where arms meet in the center.
    • Pivots at each end (wall and monitor positons)
    • Pole or Worksurface mounting brackets available.
    • Vesa 75 x 75, 100 x 100 or 100 x 200 compliant
    • Standard Colors: Light Gray or Black



     Examples of Worksurface Mounting Brackets

    Click on image for larger view

    25-01 C-Clamp Bracket

     25-01

    C-Clamp



    25-22 Grommet Pin

    25-22

    Grommet Pin


    60226 ASSEMBLY INSTRUCTIONS.pdf

    For preconfigured mounting solutions

    Download the Easy Order Guide below:



    EASY ORDER GUIDE-410-NP.pdf

    GENERAL ORDER GUIDE-410.pdf


    60226 Dual Adjustable Arm

    60228 VERTICAL, RAISABLE LCD MONITOR ARM

    60228 Vertical, Raisable arm, Worksurface-mounted

    60228 Series

    Vertical, Raisable LCD Arm

    • 2 pc. Adjustable LCD Arm, Vertically raisable.
    • Surface, pole or wall mountable.
    • Supports LCD's weighing capacity: 5-17 lbs.
    • Arm moves vertically, up-down. Pivots 360 degrees.
    • Monitor tilts forward / back, pivots left / right
    • Monitor also rotates portrait / landscape
    • Standard colors: Light Gray or Black

     Click on image for larger view

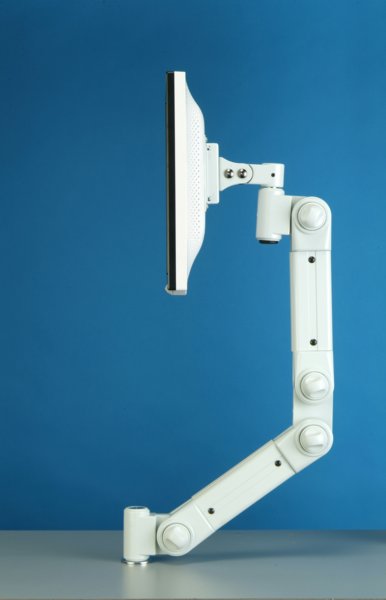

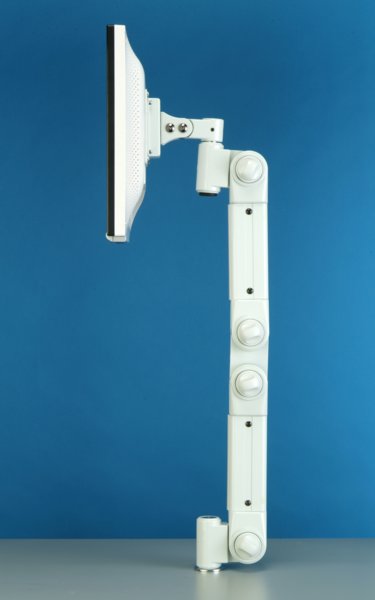

    60228 Vertical, Raisable Arm, Full-Up positon, Worksurface-mounted

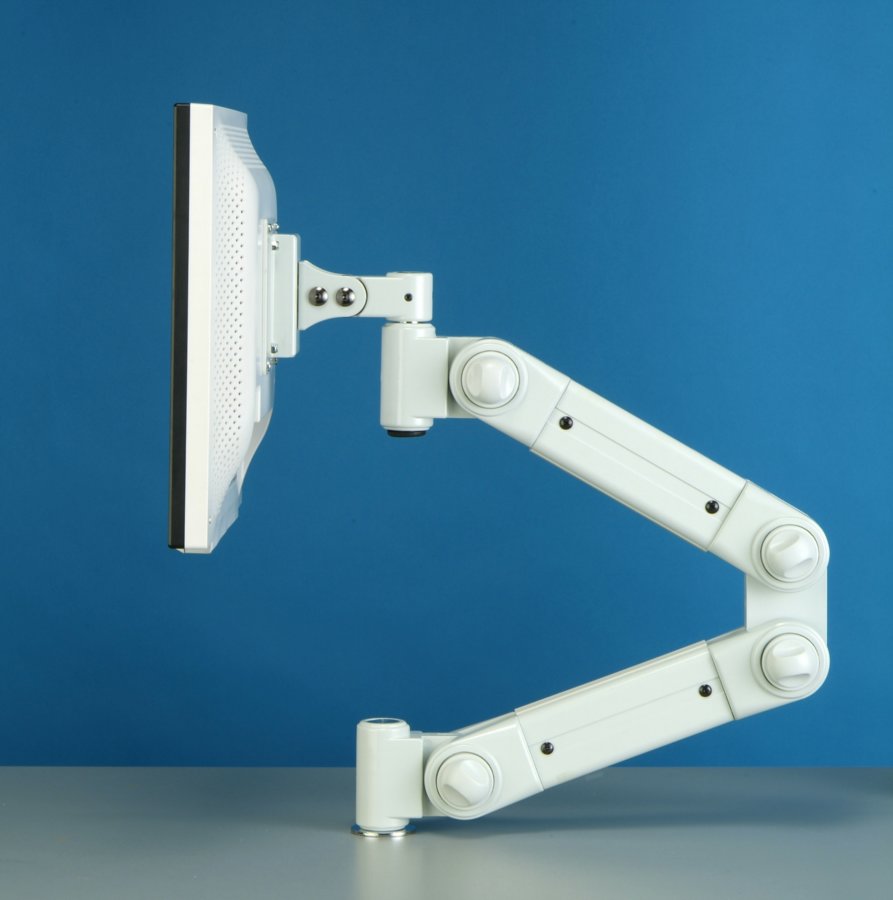

    60228 Vertical, Raisable Arm, partial-down positon, Worksurface-mounted
    60228 Vertical, Raisable Arm, partial down positon, Worksurface-mounted

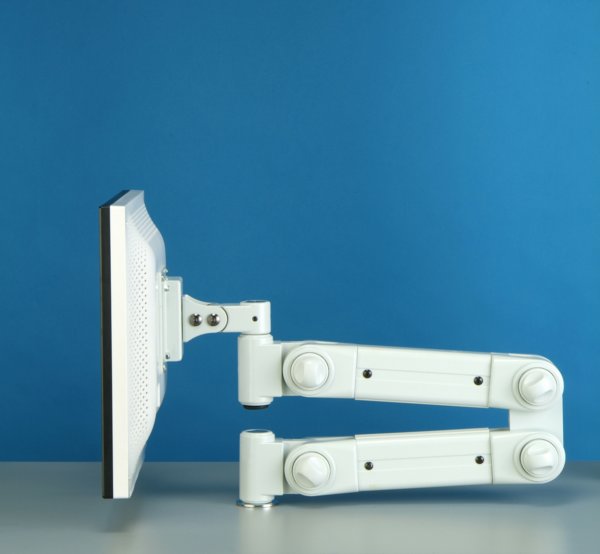

    60228 Vertical, Raisable Arm, Full-Down positon, Worksurface-mounted



    Examples of Worksurface Mounting Brackets

    Click on image for larger view

    25-01 C-Clamp Bracket

     25-01

    C-Clamp



    25-22 Grommet Pin

    25-22

    Grommet Pin


    60228 ASSEMBLY INSTRUCTIONS.pdf

    For preconfigured mounting solutions

    Download the Easy Order Guide below:




    60228 VERTICAL-RAISABLE ARM
